M8 Connector Types (with wire and Non-wire)

Time:2019-02-04 14:39:37 Hits: 1766

Do you know the classification of M8 connectors? M8 connector is divided into strip and non-strip. Today, I'll give you a brief introduction.

M8 cables

The importance of M8 connectors has also begun to be recognized by everyone. But there will always be some friends who feel strange and unfamiliar with this product. Even when they are ready to buy, they are unable to judge and help themselves to buy the most authentic high-quality products. Therefore, ximeconn will introduce this connector for you, so that you can know more about it in the process of using this product. M8 connectors are mainly divided into two types: cast cable M8 connectors and screw connection M8 connectors (also known as: no cable M8 connectors).

Pouring cable M8 connector is welded and poured into cable. The cable material is PUR/PVC. There are two kinds of optional materials (such as PUR outer cable, PUR cable wear-resistant, oil-resistant, temperature-resistant-30C degree+85C degree) when exposed to oil pollution, cold, high temperature and other harsh environments. The length of the cable can be customized to 1 m, 2 m, 5 m, 10 m to 50 m according to customer requirements. There are four colors of the cable, namely black, orange, yellow and gray. The diameter of the cable is 3.5-5.0 mm.

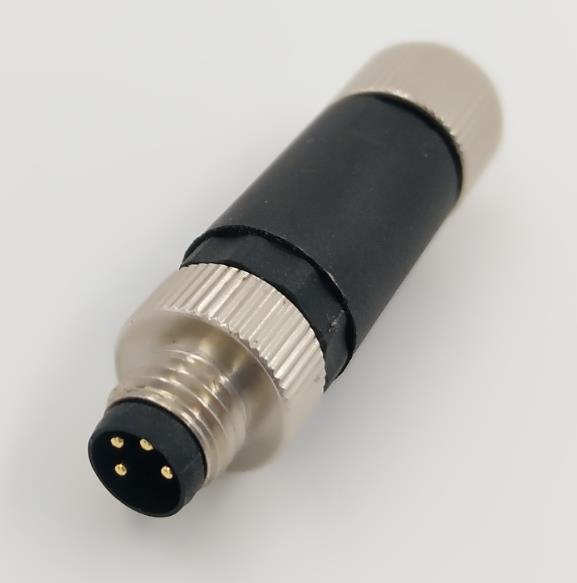

Screw connection M8 connector, welded, injection moulded, plug shell material is PA, screw connection, outlet 3.5-5M.




The number of pins/cores of M8 connector is 3/4 and 3/4 respectively. Its external form can be divided into two types: straight and elbow. The connection is tightened by M8*1 pair of threaded teeth. It is emphasized here that the groove in the plug must be aligned, otherwise it cannot be tightened. M8 connector has the advantages of good waterproof performance, convenient user wiring, convenient field installation and maintenance, stable performance, high efficiency and fast connection, saving time, high cost performance, you can customize according to your own needs.




Applications: sensors, testing instruments, electronic instruments, electronic machinery, communications, aviation, navigation, computers, LED lights, automobiles, construction machinery transmission control systems, electrical and electrical systems, industrial automation and other fields. Through reading this article, I believe that you must have a deeper understanding of M8 connectors, xime connector Technology Co., Ltd., specializing in waterproof company. Connectors, bus junction boxes, sensor connectors, cable connectors, strip sockets, automotive wiring harness, circular connectors, aviation plugs, waterproof sockets, water level and temperature sensors, etc., the delivery quality is guaranteed on that day. Welcome to call for consultation and cooperation.
