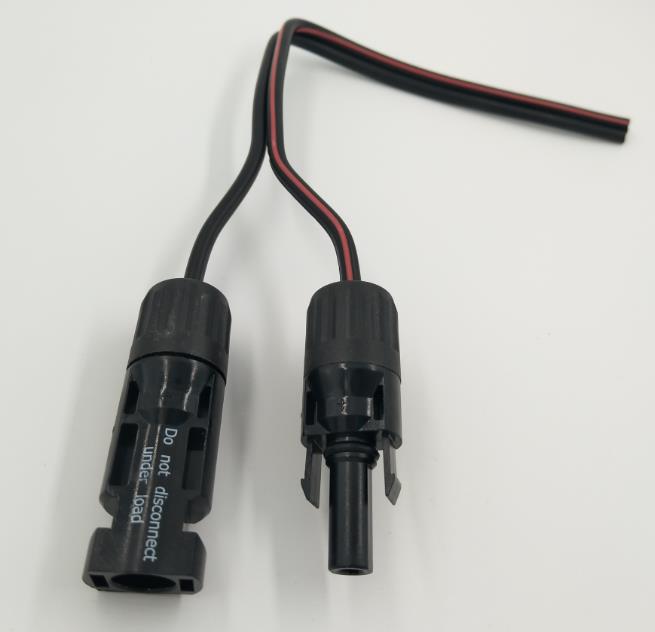

Solar pv connectors MC4 wire harness

Solar pv connectors MC4 wire harness

Solar pv connectors MC4 wire harness 1000V 30A professional manufacture,solar panel wiring,Xime Connector Technology is a professional manufacturer of industrial sensor waterproof connectors M5,M8,M9,M12,M16,M23,providing threaded waterproof connectors,m12 adapter,electronic harness design and development,2D 3D design services,solar panel cable,solar connection,solar connector,Medical plugs equipment connector,military equipment waterproof box,car wiring harness,etc.

  • description
  • Application
  • Case
  • Download


·  Snap-in locking :solar panel wiring

·  Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool, pv connectors

·  Proven xime technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector

·  Tried and tested plug connectors, 12 years of experience in the field

·  Available for assembly with cross-sections of 10mm²

·  Also available as ready made leads

·  Leads made to customer's specifications

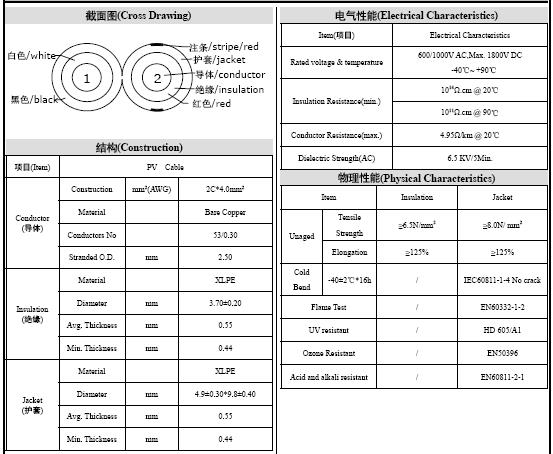

Connector system


¢4mm


Rated voltage




1000V DC(IEC)1)


1000V/1500 DC(UL)2)

Rated current



17A(1.5㎜2)



22A(2.5㎜2;14AWG)


30A(4㎜2;6㎜2;12AWG,10AWG)

Test voltage



6kV/6KV(50Hz,1min.)

Ambient temperature range



-40℃…+90℃(IEC)


-40℃…+75℃(UL)

Upper limiting temperature


+105℃(IEC)


Degree of protection,mated


IP67,IP68(1h/1m)

Contact resistance of plug connectors


0.5mΩ


Safety class




Contact material



Messing,verzinnt


Copper Alloy,tin plated

Insulation material



PC/PA


Locking system



Snap-in


Flame class



UL-94-V0


MC4 connector





Connector system


¢4mm


Rated voltage



1000V DC(IEC)1)


1000V/1500 DC(UL)2)

Rated current



17A(1.5㎜2)



22A(2.5㎜2;14AWG)


30A(4㎜2;6㎜2;12AWG,10AWG)

Test voltage



6kV/6KV(50Hz,1min.)

Ambient temperature range



-40℃…+90℃(IEC)


-40℃…+75℃(UL)

Upper limiting temperature


+105℃(IEC)


Degree of protection,mated


IP67,IP68(1h/1m)

Contact resistance of plug connectors


0.5mΩ


Safety class




Contact material



Messing,verzinnt


Copper Alloy,tin plated

Insulation material



PC/PA


Locking system



Snap-in


Flame class

UL-94-V0
