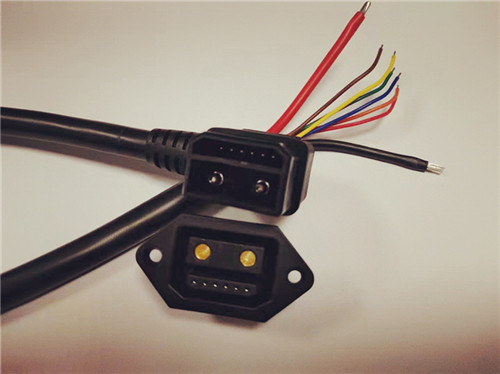

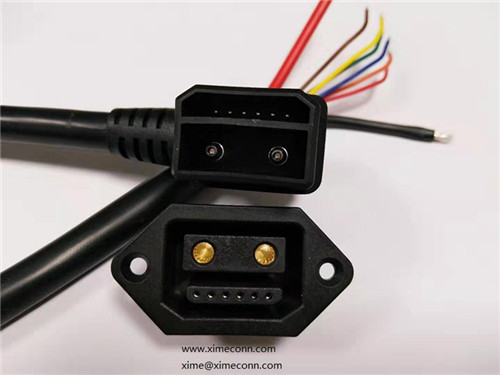

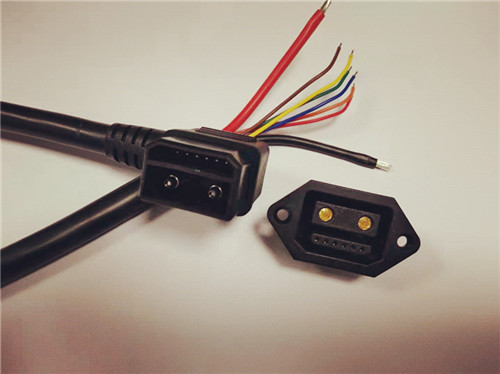

hybrid 2+6 battery energy storage connector

hybrid 2+6 battery energy storage connector

Industrial hybrid battery energy storage 2 + 6 waterproof connector provides more durable high-performance electronic contact
The rated voltage is 300VAC / DC, the current is up to 40A Level 2 power supply and 6-core 5A signal frequency transmission. The use of severe working load socket meets the requirements of CE industry. It has shockproof characteristics and prevents the coupling from loosening. It can remain stable even under extreme vibration.

  • description
  • Application
  • Case
  • Download

The rated voltage is 300VAC / DC, the current is up to 40A Level 2 power supply and 6-core 5A signal frequency transmission. The use of severe working load socket meets the requirements of CE industry. It has shockproof characteristics and prevents the coupling from loosening. It can remain stable even under extreme vibration.

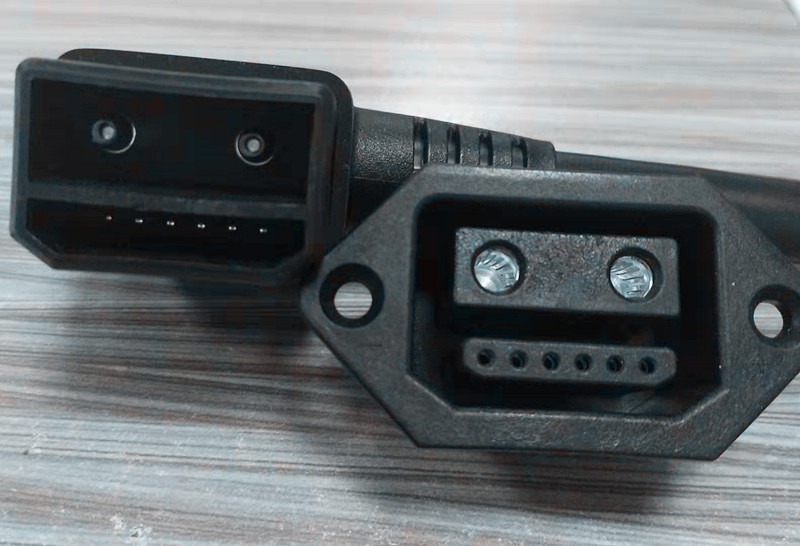

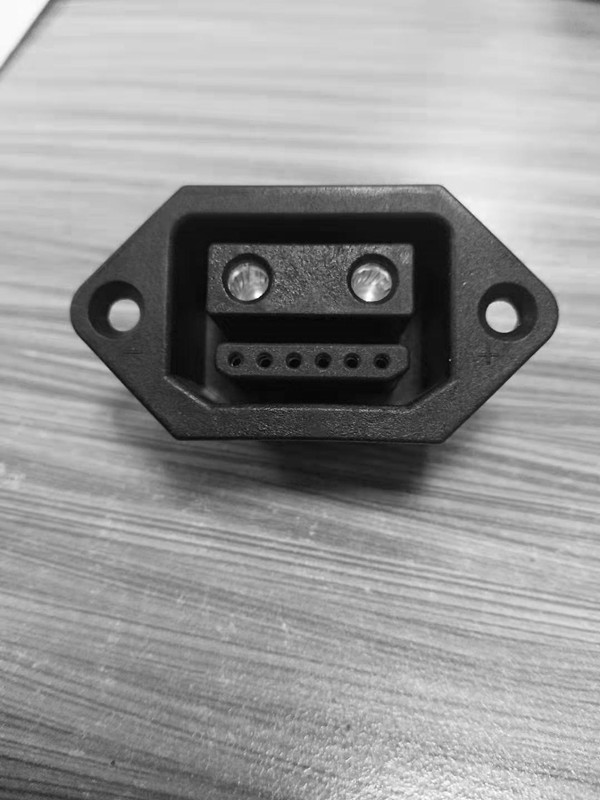

Hybrid connector2+6

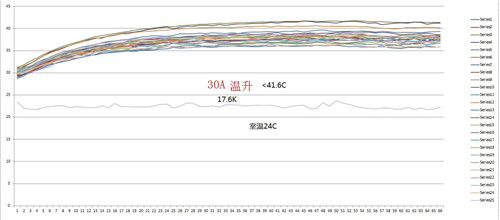

温升测试



Plastic material: PA66 GF30 injection molding, temperature resistance UL RTI up to 150 degrees



Terminal material: phosphor bronze, high elastic beryllium copper alloy



Shell material: high copper content brass, high toughness brass



Plating material: nickel base, all gold 5u



Shell plating: copper plated bottom, overall nickel plating, high salt spray corrosion resistance, outdoor corrosion resistance



Sealing material: fluororubber, resistant to high temperature and cold



Wire matching: 10 million times, 5 million times and 1 million times of high flexibility and bending resistance. Different requirements can be selected



Ambient temperature - 20 ~ + 85



Joint forming: TPU or PA66 optional



Connecting nut / screw: nickel plated brass



Seal / O-ring: FKM



Insulation resistance: 100m Ω



Contact resistance: 0.5m Ω



Shielding: optional



Protection level: IP65 in locked state

Ambient temperature - 20 ~ + 85



Joint forming: TPU or PA66 optional



Connecting nut / screw: nickel plated brass



Seal / O-ring: FKM



Insulation resistance: 100m Ω



Contact resistance: 0.5m Ω



Shielding: optional



Protection level: IP65 in locked state
