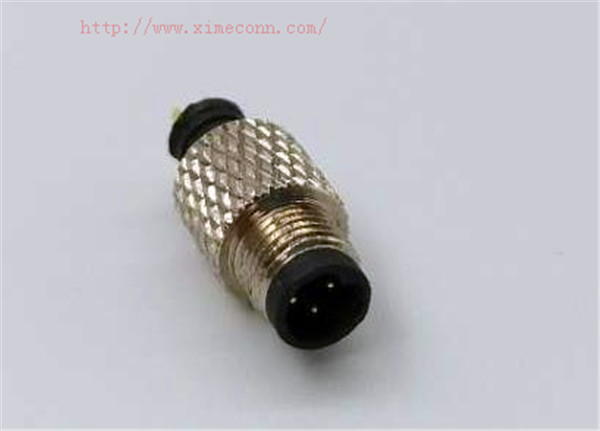

M5 connector

General information
Standard: IEC 61076-2-105
Ambient temperature: -20℃ ~ +80℃
Connector insert: TPU;PA
Connector contacts: Brass with gold plated
Connector over-molding: TPU
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Shielding: Unavailable
IP rating: IP67 in locked condition

  • description
  • Application
  • Case
  • Download

M5 connector It is widely used in smart camera, i.e. industrial camera industry. It integrates vibration resistance, micro type and multi pin. It has two to four pin specifications, which can reach IP68 waterproof level. It uses traditional thread for male and female connector plug and butt joint. In terms of materials, plastic uses high-temperature nylon, CTI reaches more than 120 degrees, and high fatigue resistance is used on hardware terminals Phosphor green or beryllium copper alloy material, plating uses gold plating process, corrosion resistance, plug-in resistance is very excellent, fluoro rubber is used for waterproof ring, extreme cold resistance is - 40 degrees, high temperature resistance is more than 150 degrees, waterproof performance, environmental performance is very strong, is more mature products used in the industrial field.

 M5 connector

Plastic material: PA66 GF30 UL CTI = 0  or TPU plastic molded

Terminal material: phosphor bronze, high elastic beryllium copper alloy

Shell material: high copper content brass, high toughness brass

Plating material: overall nickel bottom, all gold 10u

Shell plating: copper plated bottom, then overall nickel plating, high salt spray corrosion resistance

Sealing material: fluororubber, cold resistant, high temperature resistant, elastic and stable

Wire matching: high flexibility and bending resistance 10 million times, 5 million times,


General information

Standard: IEC 61076-2-105
Ambient temperature: -20℃ ~ +80℃
Connector insert: TPU;PA
Connector contacts: Brass with gold plated
Connector over-molding: TPU
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Shielding: Unavailable
IP rating: IP67 in locked condition


Plastic material: PA66 GF30 UL CTI = 0  or TPU plastic molded

Terminal material: phosphor bronze, high elastic beryllium copper alloy

Shell material: high copper content brass, high toughness brass

Plating material: overall nickel bottom, all gold 10u

Shell plating: copper plated bottom, then overall nickel plating, high salt spray corrosion resistance

Sealing material: fluororubber, cold resistant, high temperature resistant, elastic and stable

Wire matching: high flexibility and bending resistance 10 million times, 5 million times
