Choosing the right m12 connector involves more than just dimensions and form factor; understanding insulation and contact resistance standards is critical for ensuring optimal performance and longevity in demanding environments. Insulation resistance, typically rated at or above 100MΩ for high-quality m12 connectors, prevents electrical leakage that can disrupt signal integrity or pose safety hazards. Meanwhile, contact resistance at 5mΩ or lower is a benchmark indicating that the connector offers minimal electrical impedance, which directly affects signal clarity and power efficiency. Technical guides developed by m12 connector manufacturers provide detailed frameworks to select connectors aligned with specific application needs, whether those involve sustained exposure to extreme temperatures or high-frequency signal transmission. For instance, deploying connectors with TPU insert materials and gold-plated brass contacts contributes to consistent electrical contact and mechanical endurance. These guides often cover test methods compliant with IEC 61076-2-101 and other industry standards, ensuring that users can approach connector selection with confidence, maintaining operational reliability and adherence to quality benchmarks.

As industries adapt to shifting operational demands and environmental conditions, the m12 connector remains a reliable ally for engineers and technicians alike. Its combination of durable materials, thoughtful design, and customizable configurations positions it as a trusted choice crafted by expert m12 connector manufacturers. The assurance of tight electrical specifications like optimized contact and insulation resistance enhances trust in these connectors’ performance. In harmonizing technical integrity with practical adaptability, this connector series continues to support stable connections well into the future.

References

1.       M12 connector – Comprehensive overview of industrial circular M12 connectors with various pin counts and coding options

2.       Military Push Pull Connector – Description and specifications of robust, push-pull locking connectors designed for industrial and military environments

3.       Custom Electrical Box Solutions – Information on custom electrical boxes with high and low voltage assembly options paired with M12 connectors

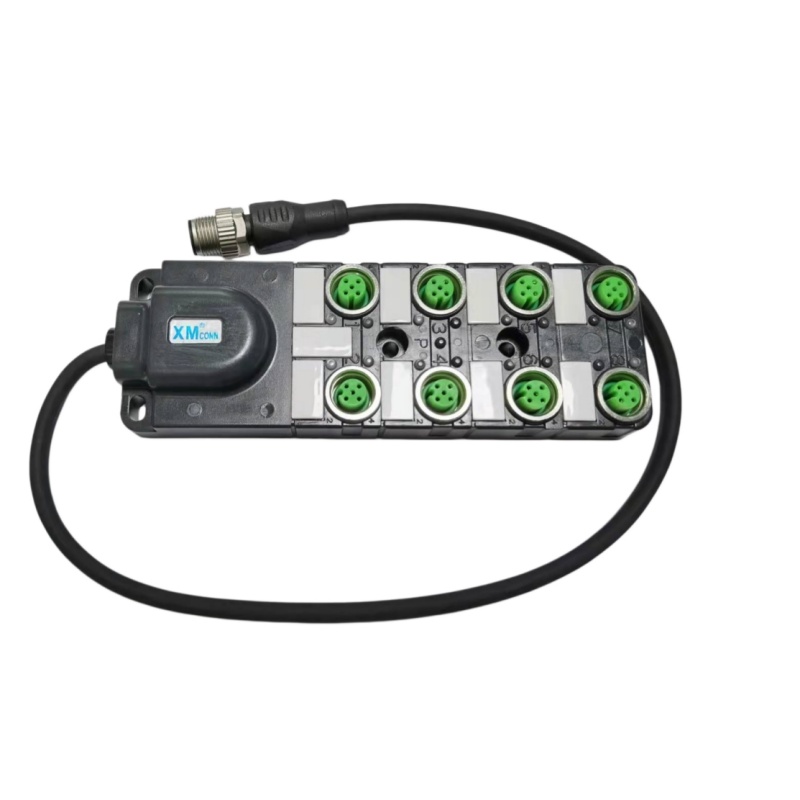

4.       M12 CAN BUS 1X8 female connector output junction box – Technical data and application of M12 CAN BUS connectors for robust communication interfaces

5.       M12 8pins panel connector male connector – Technical specifications of M12 8-pin male panel connectors featuring gold-plated brass contacts and insulation resistance standards
