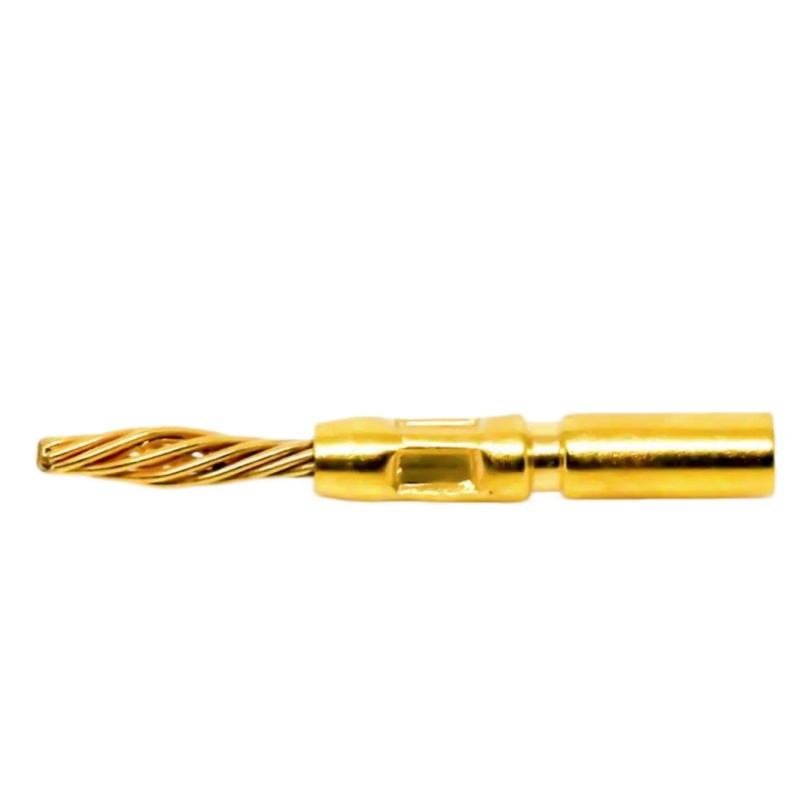

Density changes the electrical and mechanical math of the connector. A micro rectangular contact pair built around 0.68mm twist pins and 0.92mm socket contacts does not behave like a standard industrial pin at the same current. Each line carries 1A, 3A, or 5A depending on the variant specified, and each line must stay at or below a contact resistance of 10mΩ across -65°C to +125°C. Across dozens of contacts, tolerance for a weak line disappears. A dense array leaves little room for an outlier contact, and there is no spare shell room for a redundant channel. The mechanical side shifts just as much. Mating and separation forces add up across the array, and the geometry that keeps a single twist pin springy must also survive the panel cutout, shell envelope, and harness routing inside the machine. Supplier evaluation moves from catalog breadth toward process control. The needle wire in a twist pin is C17200 beryllium copper wound into a concentric, multi-strand elastic contact. The pin body is C2680 brass, and the two ends are joined by laser welding. Ask a twist pin connector manufacturer how winding angle, weld flatness, and gold thickness are controlled. Gold thickness at 0.8μm, 1.27μm, or a custom figure affects contact behavior after repeated mating and interacts with the chosen current rating. A typical upgrade makes this concrete. A team rebuilding an inspection device finds the mechanical envelope locked and the panel cutout already machined, but the new sensing module needs several dozen extra signal lines. The sourcing team must find two or three suppliers who can work within that constraint. Drawing turnaround, willingness to flag tolerance conflicts, and evidence of repeatable plating and welding separate them. A supplier with a deep catalog but no engineering reply is a slow path to a prototype

0.92mm socket contacts
