When someone cites MIL-DTL-83513 or GJB246 for a micro rectangular connector, the discussion usually narrows to a few performance areas. These areas are separate on purpose. A connector can have good contact resistance and still need close attention to vibration. It can pass a temperature test and still have a limited mating cycle rating. Reading the standards as a sequence of performance topics helps engineers avoid treating one strong number as a complete picture.

1. Contact resistance and low-level signal behavior sit at the center of connector evaluation

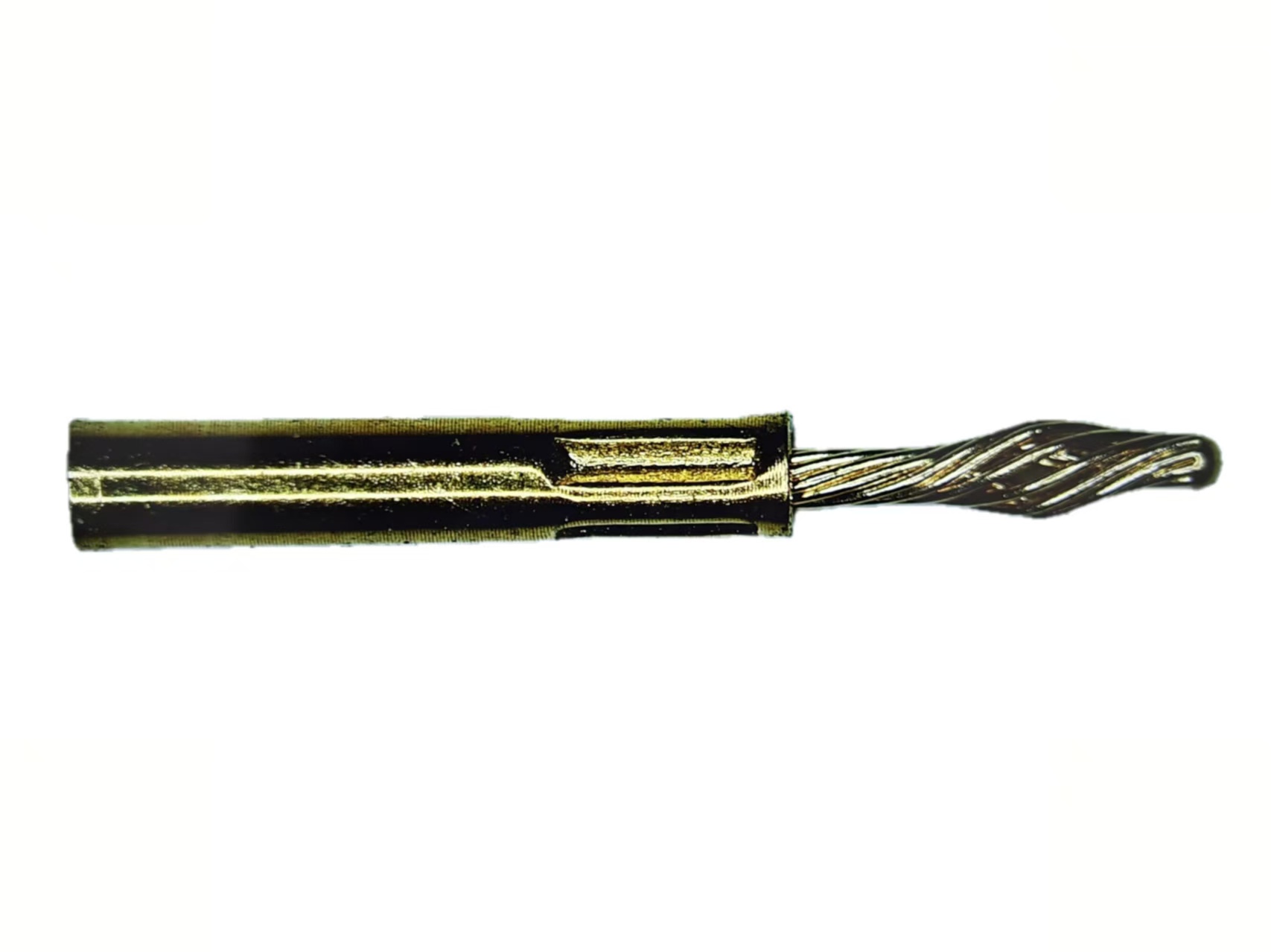

Contact resistance is often the first performance topic because it directly affects signal quality and power loss. In low-level signal circuits, even a small increase in resistance can change the voltage seen by a sensor or receiver. Standards such as MIL-DTL-83513 and GJB246 direct attention to how contact resistance is measured, what limit applies, and whether the measurement reflects dry-circuit or low-energy conditions. IEC 60488-2:2004 provides general measurement background for contact resistance, which helps readers understand why test method matters. Documented performance for the Ximeconn micro rectangular twist pin connector states a contact resistance of ≤10mΩ. Current options of 1A, 3A, and 5A are listed separately, which is useful because current rating and contact resistance answer different questions.

2. Vibration, shock, and temperature range describe the working environment

Vibration, shock, and temperature range describe the environment a connector must survive. A micro rectangular connector in a moving medical imaging system, a portable field instrument, or a vehicle module may see continuous vibration, sudden impact, and temperature swings. Standards ask readers to examine the frequency range, acceleration level, random vibration profile, shock level, and operating temperature limits. IEC 60494-1:2013 supports general vibration test context, which helps explain why these figures are reported in a structured way. Documented performance for the Ximeconn micro rectangular twist pin connector includes vibration from 10Hz to 2000Hz at 294m/s², random vibration of 41.7g RMS, shock of 1200m/s², and a temperature range of -65℃ to +125℃. These numbers give engineers a concrete way to compare a connector against an application environment. Mechanical life belongs in the same performance conversation. Standards and test methods look at how many mating cycles a contact pair can complete before performance changes. IEC 60534-8-2:1991 provides general mechanical endurance test background. The Ximeconn micro rectangular twist pin connector is documented with a nominal 1000-cycle mechanical life, which gives engineers a reference point for expected service and maintenance cycles. Together, contact resistance, vibration, shock, temperature, and mechanical life form the practical vocabulary behind MIL-DTL-83513 and GJB246 references.
