Your current location：Home - Products - Circular connector - M8 seriesFor different electromagnetic environments in industrial sites, products are divided into shielded and unshielded versions to accurately solve interference problems:
Unshielded M8 connector: Made of environmentally friendly plastic shell, it has a lightweight structure and lower cost, suitable for clean working conditions inside control cabinets, ordinary single machine equipment, no frequency converter, and no high-power motor. It meets the requirements of conventional switch sensor signal transmission, is economical, practical, stable, and durable.
Shielded M8 connector: Equipped with a brass nickel plated metal shell and a 360 ° full circle shielding structure, used with shielded cables, it can effectively isolate electromagnetic interference generated by frequency converters, servo motors, and contactors, and perfectly adapt to high-precision transmission scenarios such as analog signals, encoder signals, and industrial Ethernet. Standardize single ended grounding design, eliminate ground circulation interference, and significantly improve equipment operation stability

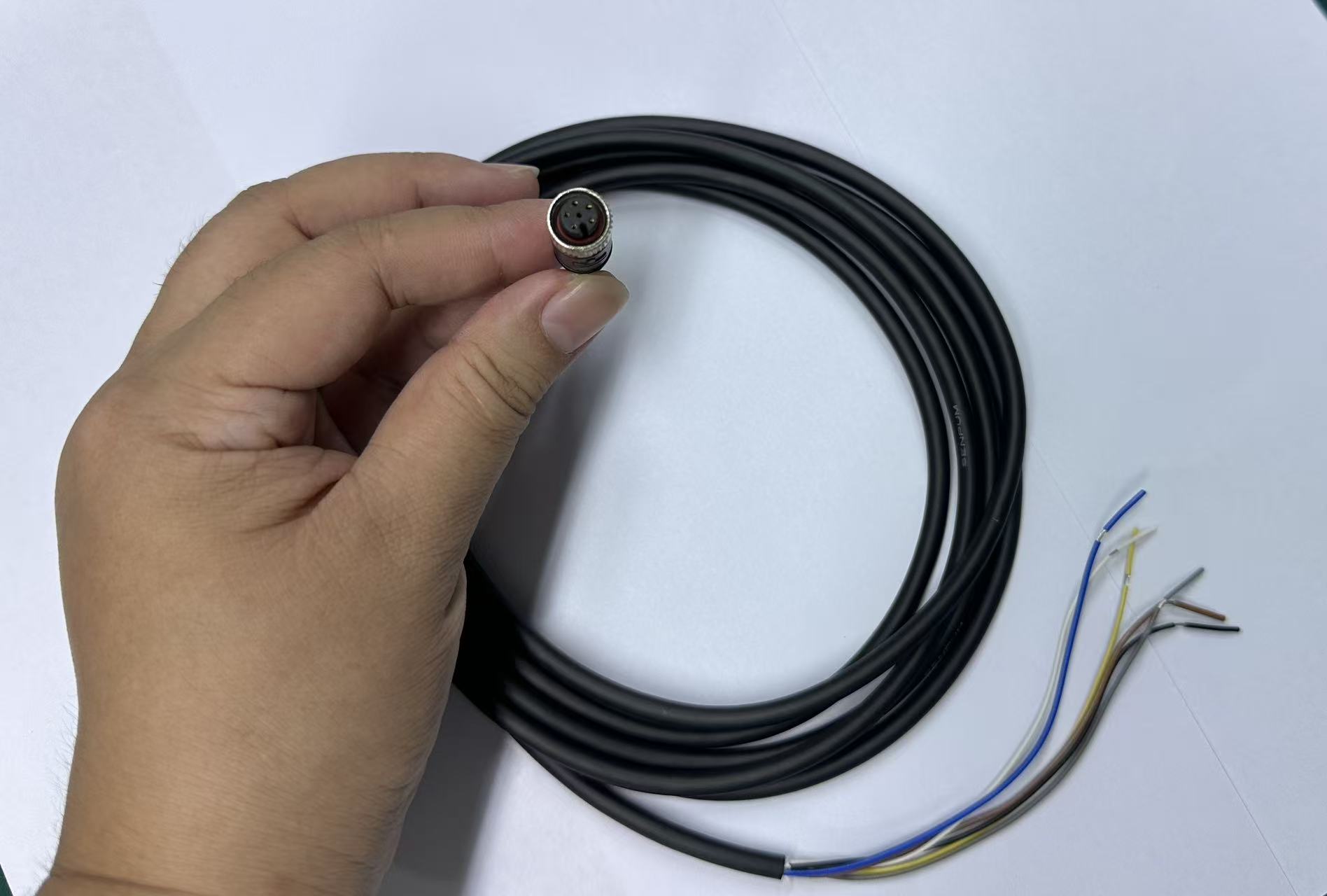

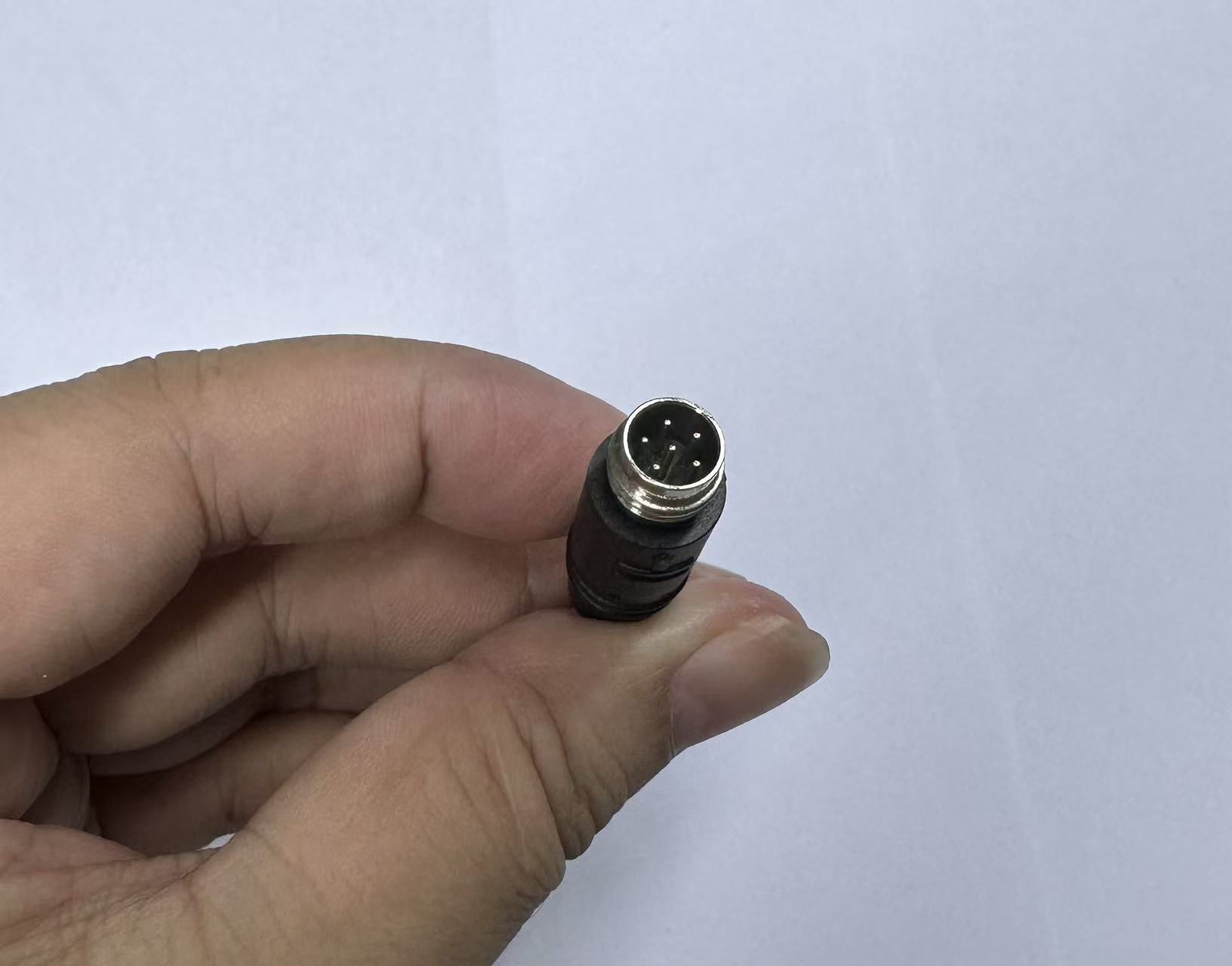

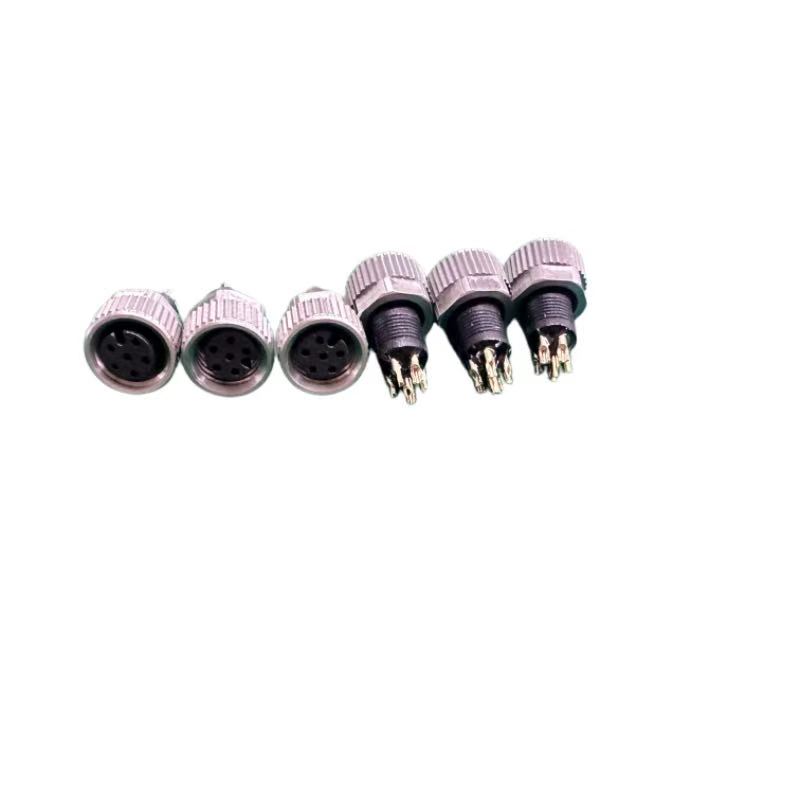

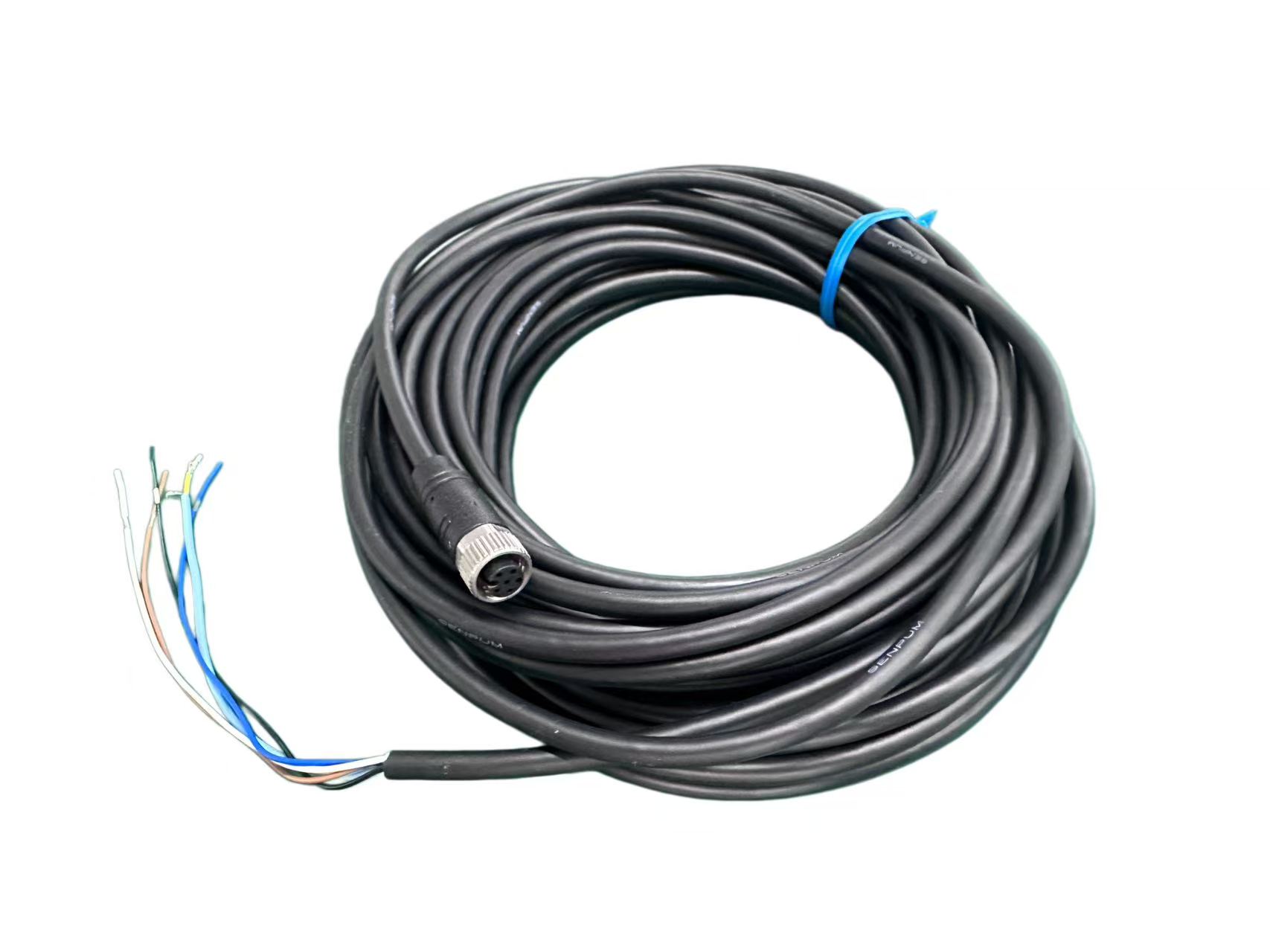

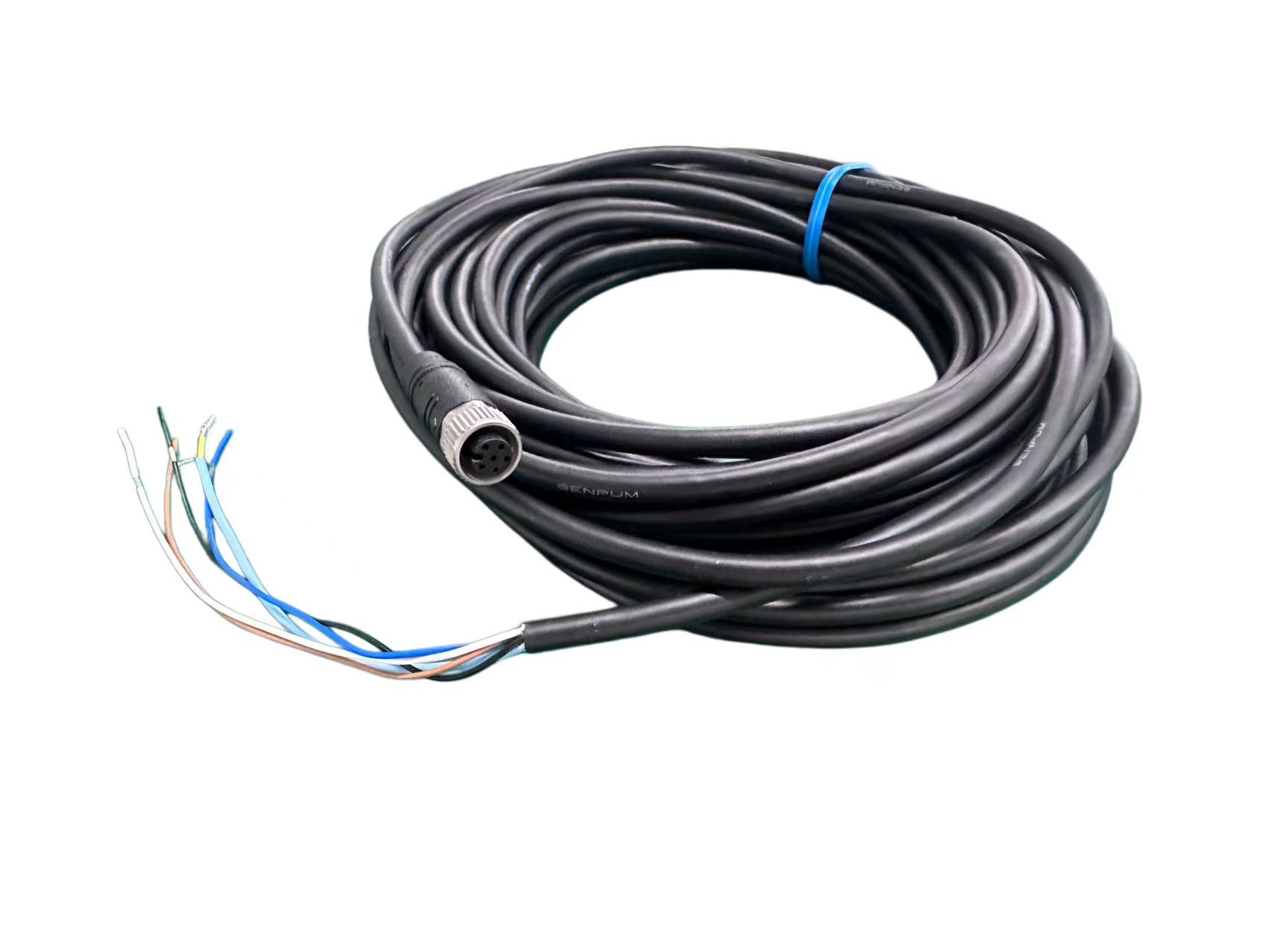

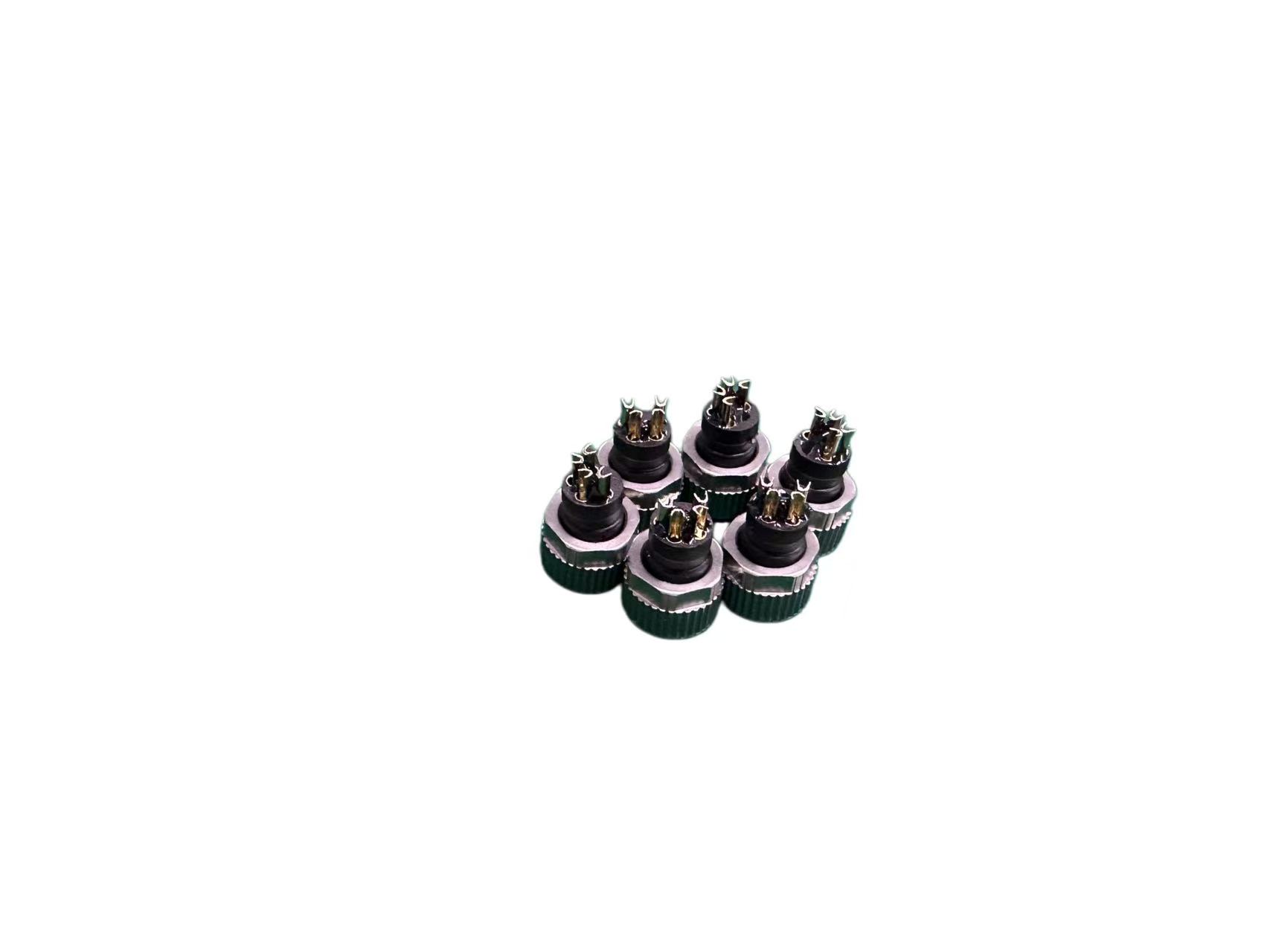

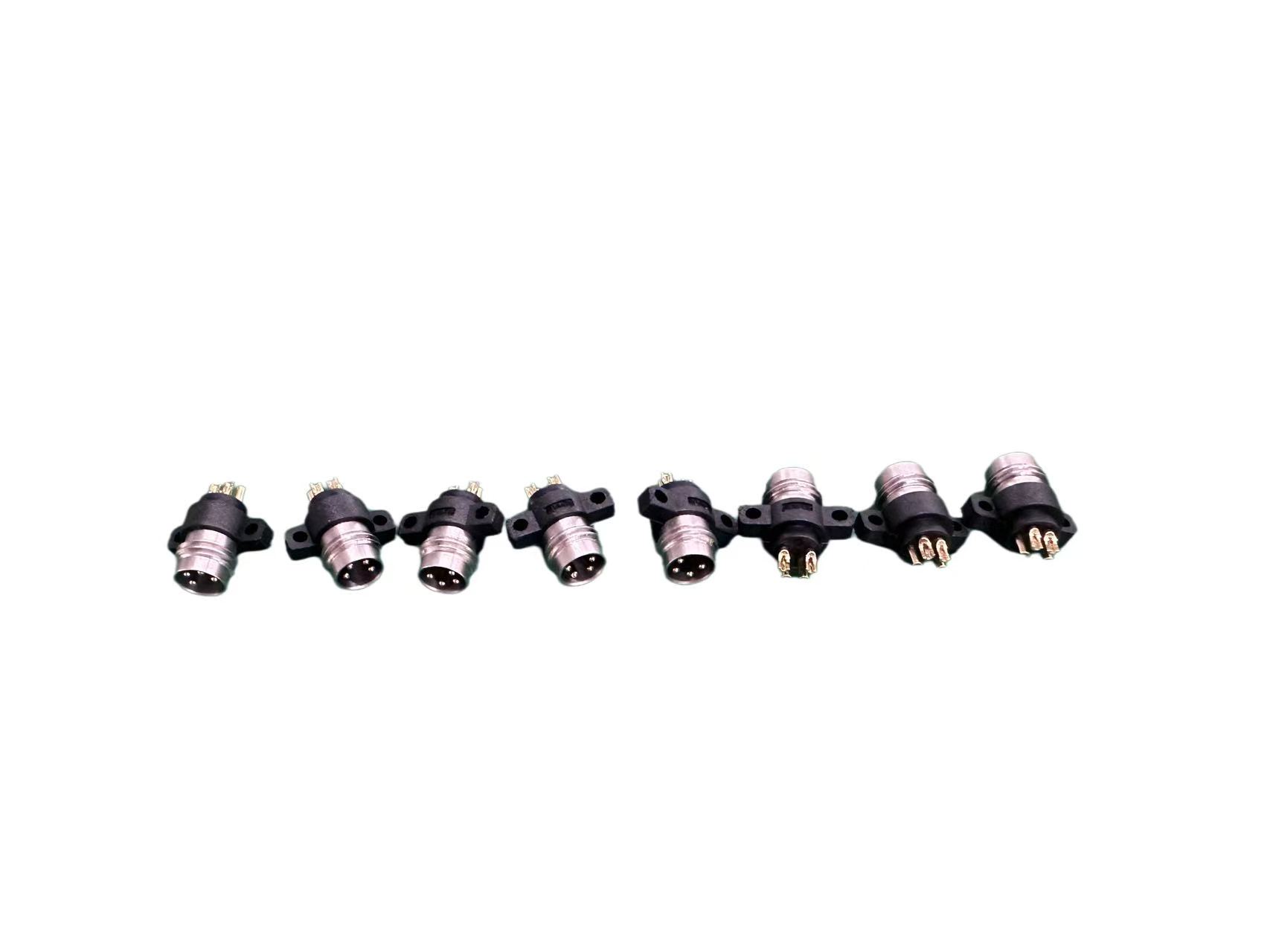

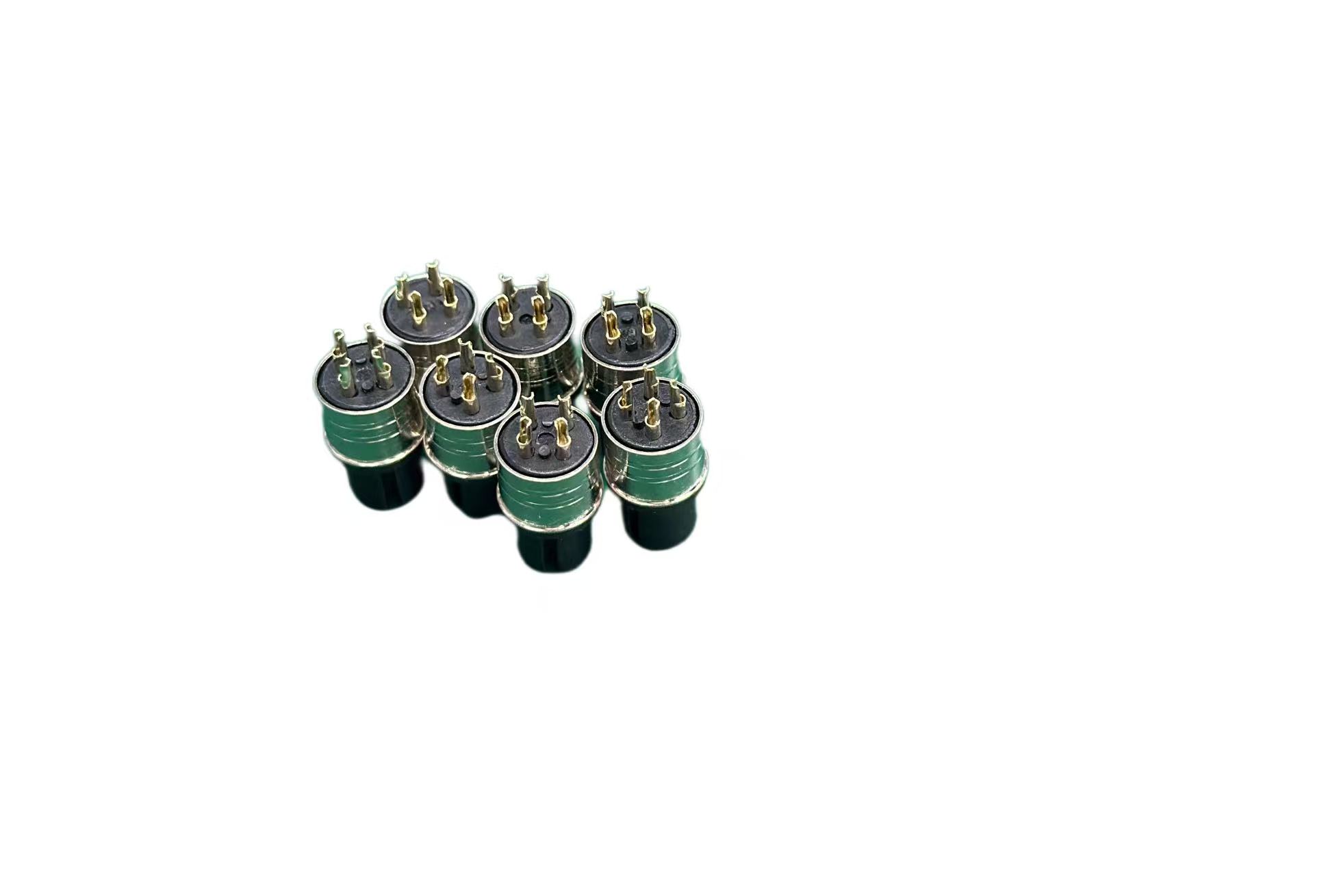

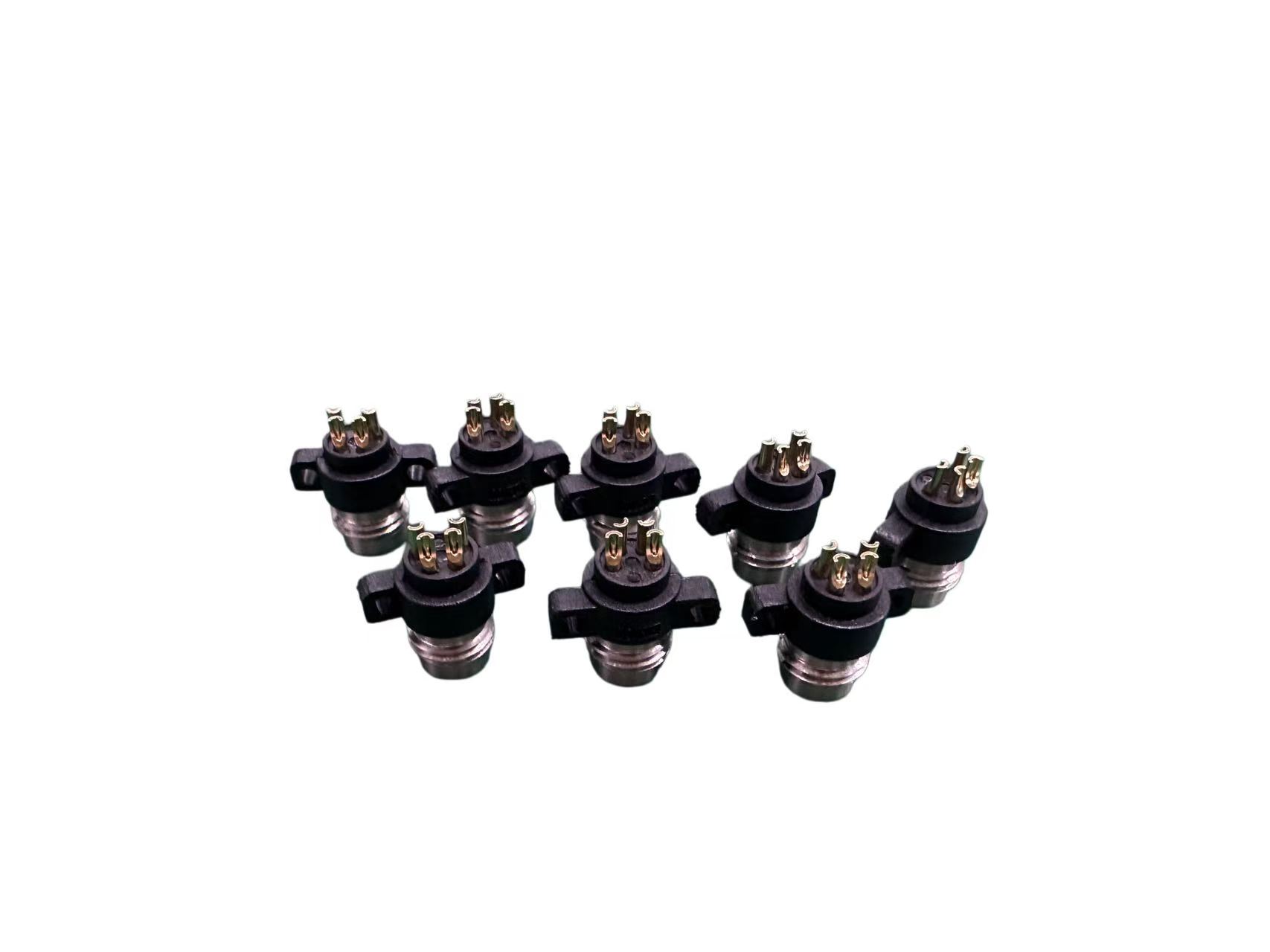

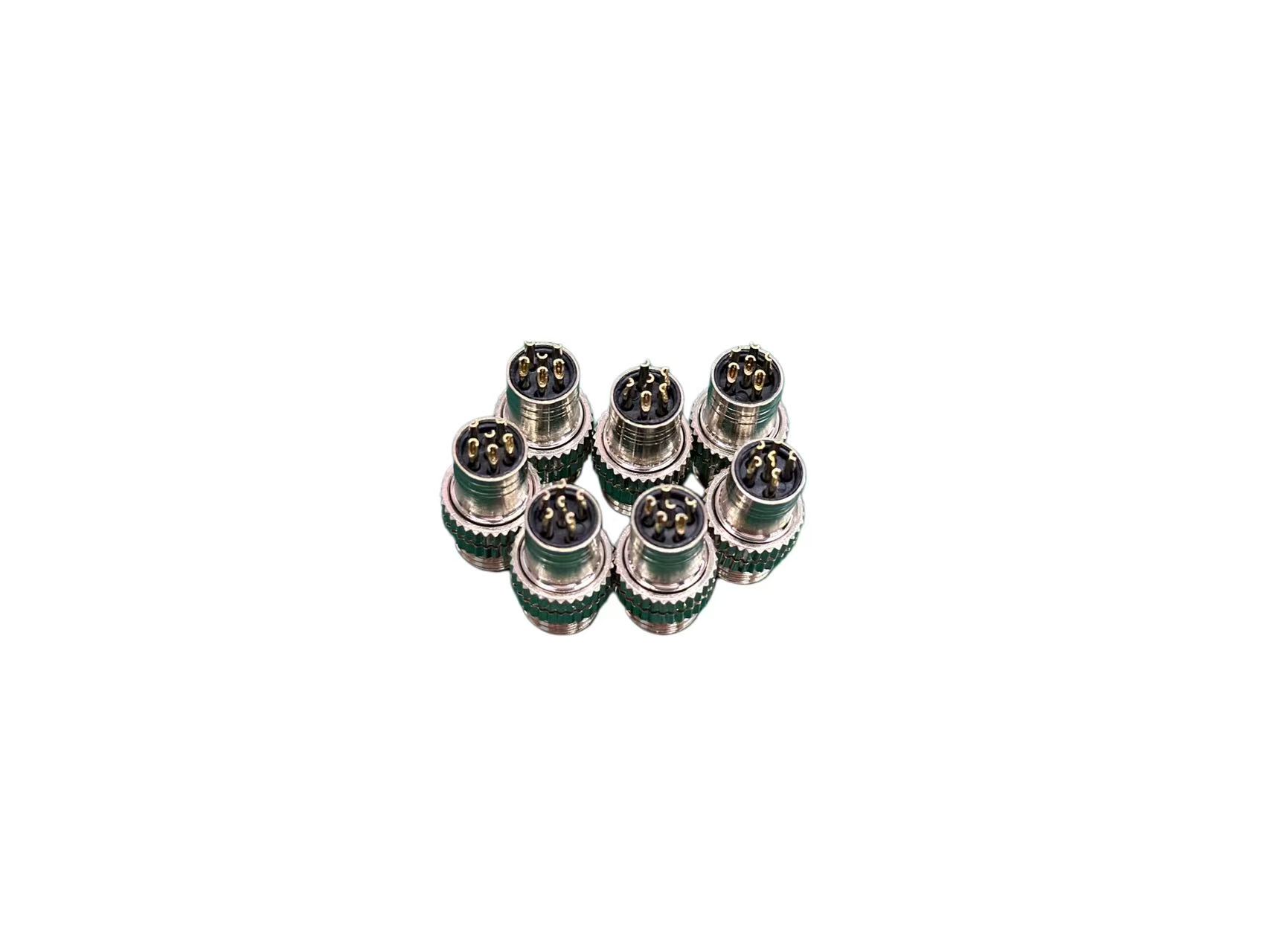

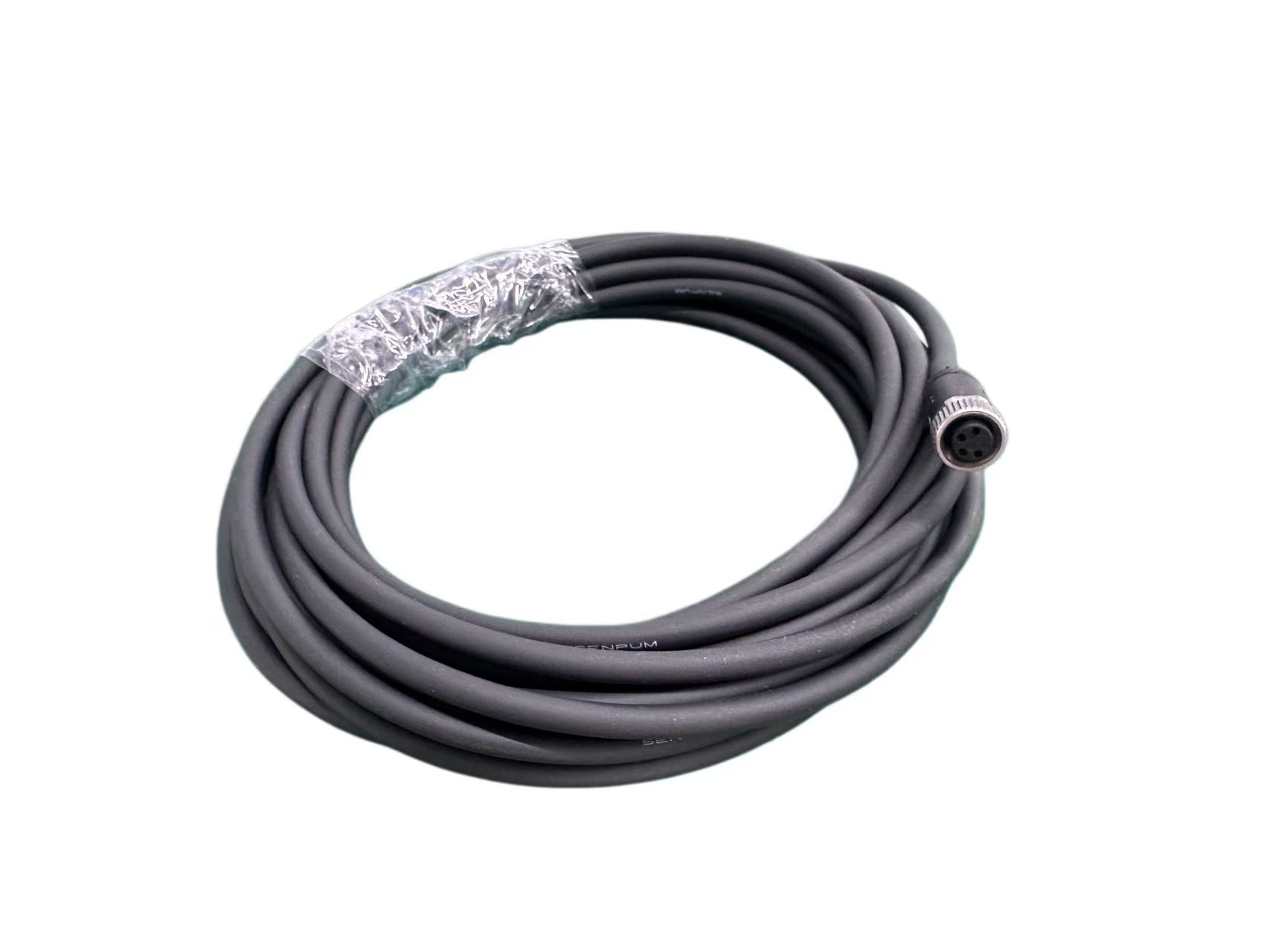

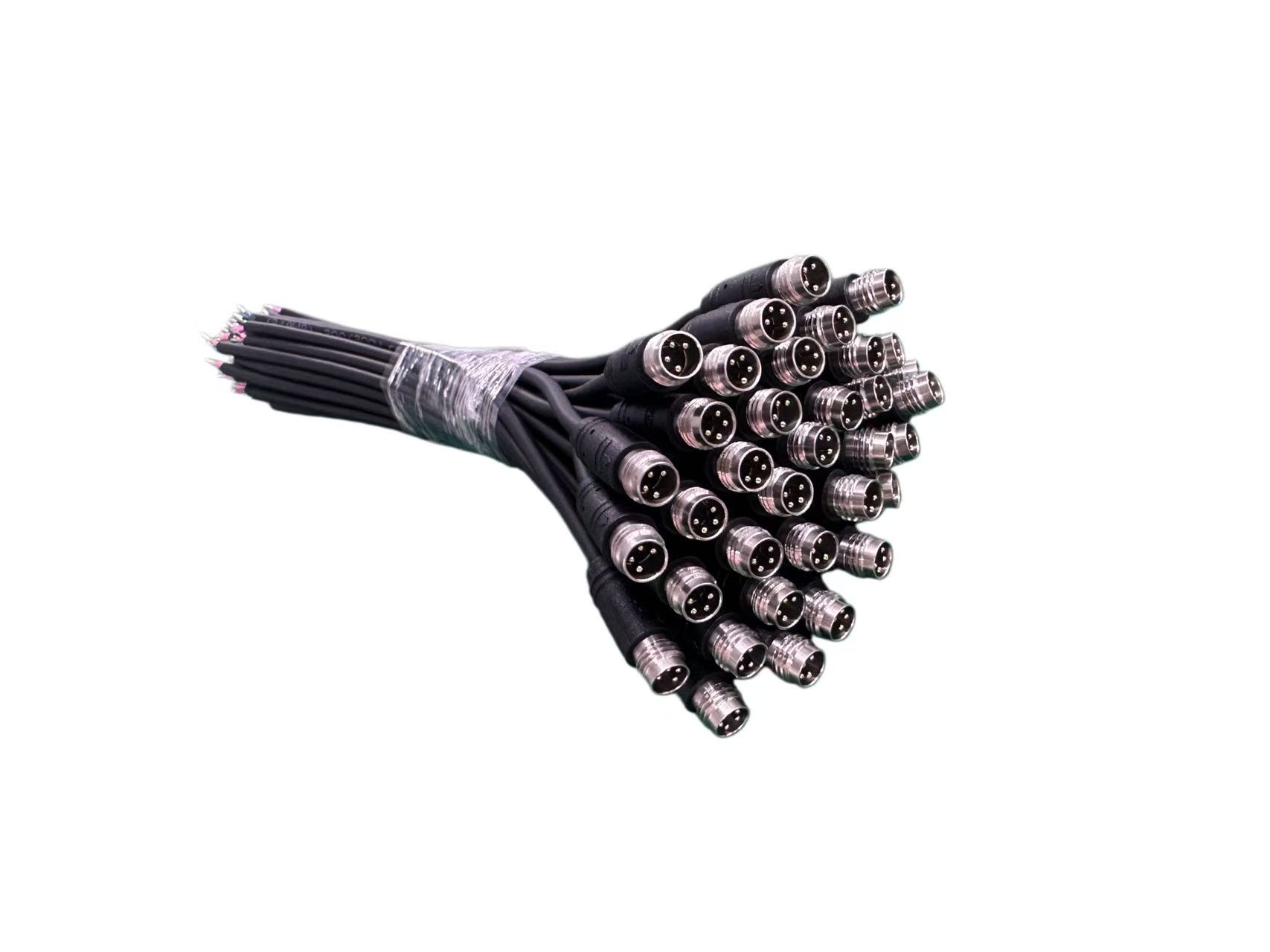

M8 circular industrial connector complies with IEC 61076‑2‑104 standard, M8×1 thread, IP67 protection rating. Available in 3‑8 pins, A‑Code, B‑Code, D‑Code coding. Male/female, straight / 90° angled versions, shielded and unshielded options. Cable with PVC or PUR jacket, custom cable length supported.
Shielded type with 360° metal shell for EMI suppression, ideal for sensor, actuator, IO‑Link, Profinet Ethernet signal transmission. Widely used in automation, AGV, robot, packaging machinery.
Under the trend of miniaturization and dense wiring of industrial automation equipment, stable signal transmission in narrow spaces has become the key to the stable operation of equipment. The M8 circular connector, as a core accessory for industrial micro connections, is widely used in sensor, actuator, IO Link communication, industrial Ethernet, and intelligent automation equipment signal connections due to its compact body, IP67 waterproof and dustproof, anti vibration and anti loosening, and multi code anti misoperation adaptation advantages. It is the preferred industrial connection solution to replace traditional wiring, improve equipment stability and wiring cleanliness.
This series of M8 connectors is strictly produced in accordance with the IEC 61076-2-104 industrial standard, using an M8 × 1 standard thread locking structure. The lock buckle is firm, anti loose and anti loose, and suitable for complex industrial conditions such as workshop vibration, oil pollution, moisture, dust, etc. It also meets the three core requirements of universality, stability, and anti-interference. At the same time, it supports shielded/unshielded, multi specification core number and angle selection to meet the precise matching needs of different equipment.
|
