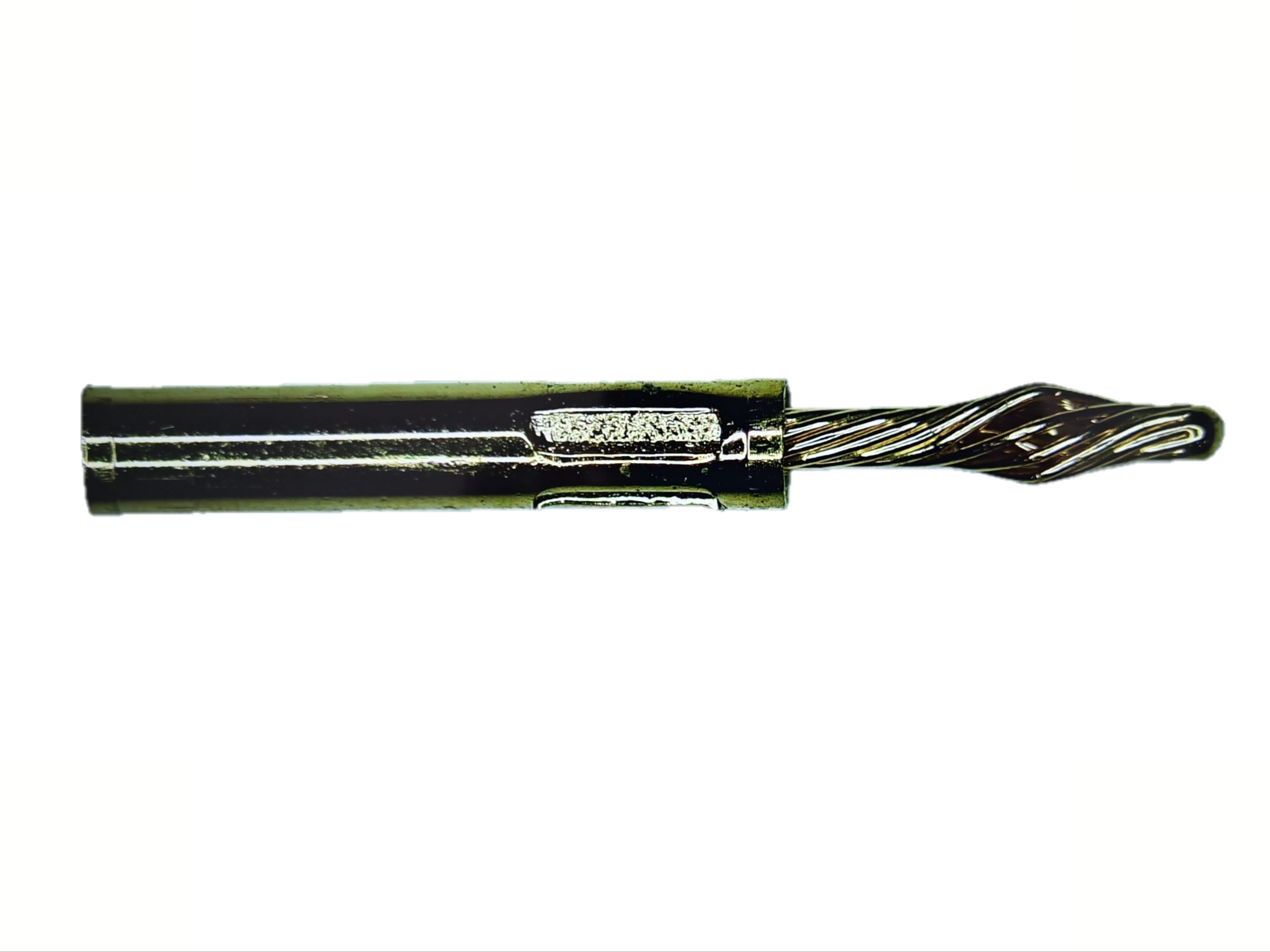

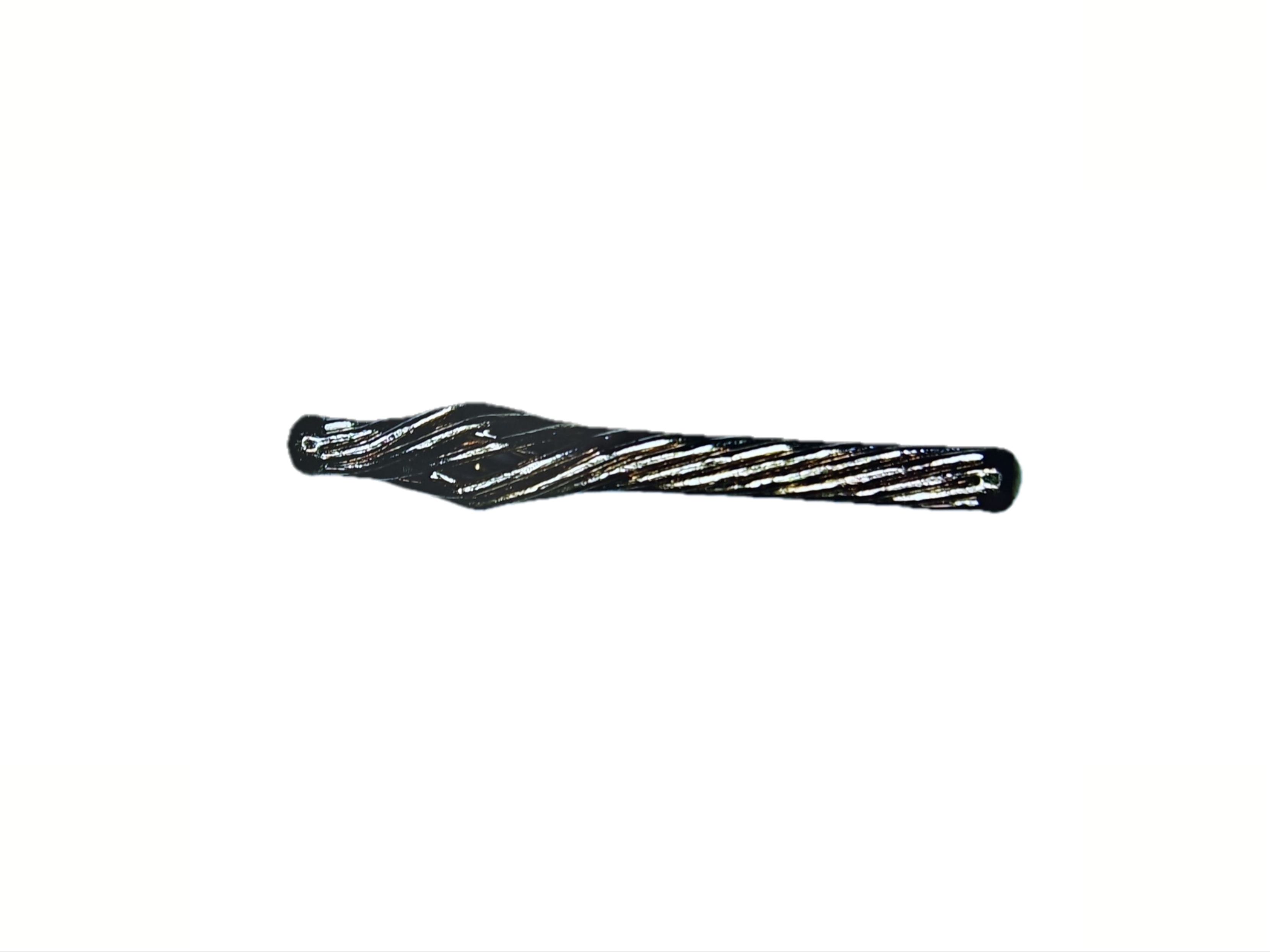

Medical device projects usually define twist pin requirements from the inside out. The enclosure sets available space, the circuit sets current, the duty cycle sets the wear target, and the operating environment sets temperature, vibration, and shock limits. For a medical imaging module or compact electronic device, this often points to a micro rectangular connector with a 0.68mm twist pin and a 0.92mm mating contact. The small contact pair lets engineers route more signals in a tight package while keeping insertion and separation behavior predictable. Separation force from 0.25N to 0.8N gives the project team a workable range for mating feel and retention without making assembly difficult. The electrical and mechanical specifications then become the real filter. Contact resistance of ≤10mΩ supports signal integrity in low-level circuits and reduces heat at the contact interface. Current ratings of 1A, 3A, and 5A let the same connector family serve different power and signal needs. An operating temperature range of -65°C to +125°C covers wide thermal swings in medical electronics. Vibration testing from 10Hz to 2000Hz at 294m/s², random vibration of 1.0g²/Hz (41.7g RMS), and shock of 1200m/s² show how the contact behaves when equipment is moved, transported, or used in a mechanically active environment. Put these points into the requirement table before talking to a twist pin connector manufacturer. Materials and construction belong in the requirement definition, not in a later price discussion. C17200 beryllium copper wire provides the spring properties of the twist pin, while the C2680 brass body gives the contact structure a stable base. Laser-welded ends keep the wire bundle fixed and clean, supporting consistent mating over the connector's life. Gold plating at 0.8μm, 1.27μm, or a custom thickness helps tune wear resistance and contact stability for the expected duty cycle. Nominal mechanical life is 1000 cycles; higher wear resistance can be supported with specific plating and customization. For medical use, the practical scope is internal device interconnects, not implantable applications.
