Contact fit in micro connectors is a relationship, not a list of sizes. The 0.68mm pin and the 0.92mm bore only become meaningful when the 0.58mm +0.01mm gauge, the 0.25N to 0.8N separation force window, and the IT12 and H12 tolerance grades are read alongside them. For precision instrument layout work, that means treating the contact pair as one dimension set from the start, checking that pin band and bore band overlap sensibly, and confirming that the inspection method matches the design intent. Get those four items aligned and the rest of the mechanical layout has a solid foundation to sit on.

FAQ

Q：What do the 0.68mm pin and 0.92mm bore measure?

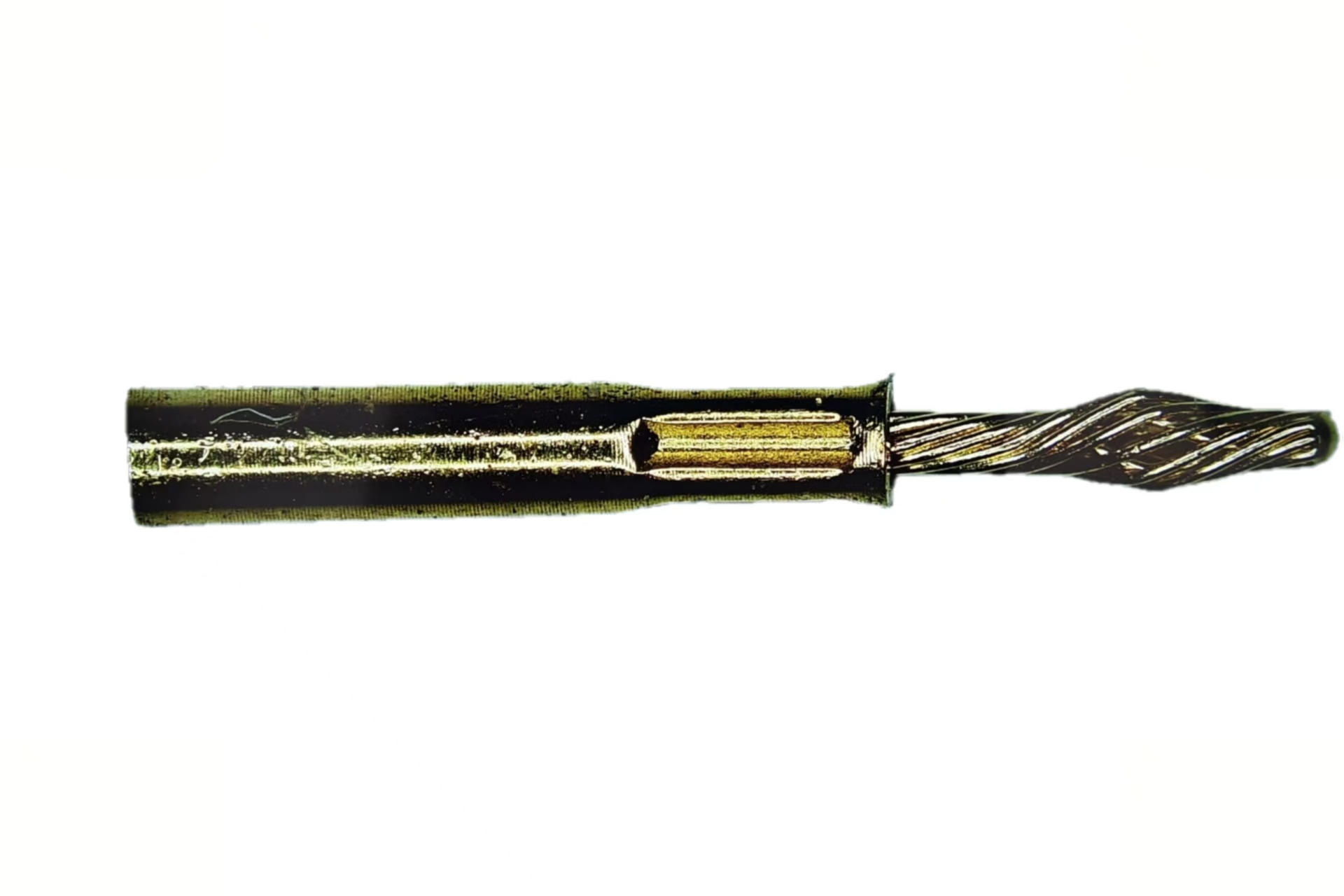

A：The 0.68mm figure is the nominal diameter of the twist pin's wound body, and the 0.92mm figure is the diameter of the receiving bore on the socket side. They are two halves of one mating interface, so the useful information comes from their relationship rather than from either number alone. The pin deflects inside the bore to create contact pressure, and that behaviour is confirmed by a separation force reading rather than by the two diameters by themselves.

Q：What is the role of a 0.58mm gauge in twist pin contact inspection?

A：The 0.58mm +0.01mm gauge is a fixed reference feature used during inspection of the contact pair. Because a twist pin is small and springy, a gauge gives an inspector a repeatable check that does not depend on how a measuring tool is held. Paired with the 0.25N to 0.8N separation force window, it turns drawing tolerances into a physical pass-or-fail result that receiving inspection and production teams can apply consistently.

Q：Why is separation force important for a 0.68mm twist pin?

A：Separation force is measured as the pin is withdrawn from the bore, so it captures the pin's spring behaviour and the bore's actual size in one value. A nominal drawing cannot show whether the strands develop enough pressure once assembled. A window of 0.25N to 0.8N gives designers and inspectors a defined range to work with, and it sits upstream of the ≤10mΩ contact resistance target that follows from a mechanical fit working correctly.
