On the bench, two fieldbus distributors can look almost alike: a black moulded body, a knurled nut, a short row of contacts. The code decides whether your segment runs, and it should be settled before anyone compares housings. A-coding uses a contact block with a keyway position that suits sensor, power, and CAN-style layouts. D-coding uses a four-contact block with a different keyway offset, so an A-coded plug will not seat in a D-coded port. That physical refusal keeps a 24 V sensor lead from being pushed into an Ethernet link on a machine module where both exist. The M12 screw-locking interface has its standardization background in IEC 61076-4-001; the A- and D-coded families are covered by IEC 61076-2-101 and IEC 61076-2-104. Choose the code from the protocol first; the housing can follow.

1. A-Coding Suits Sensor, Power, and CAN-Style Signal Layouts

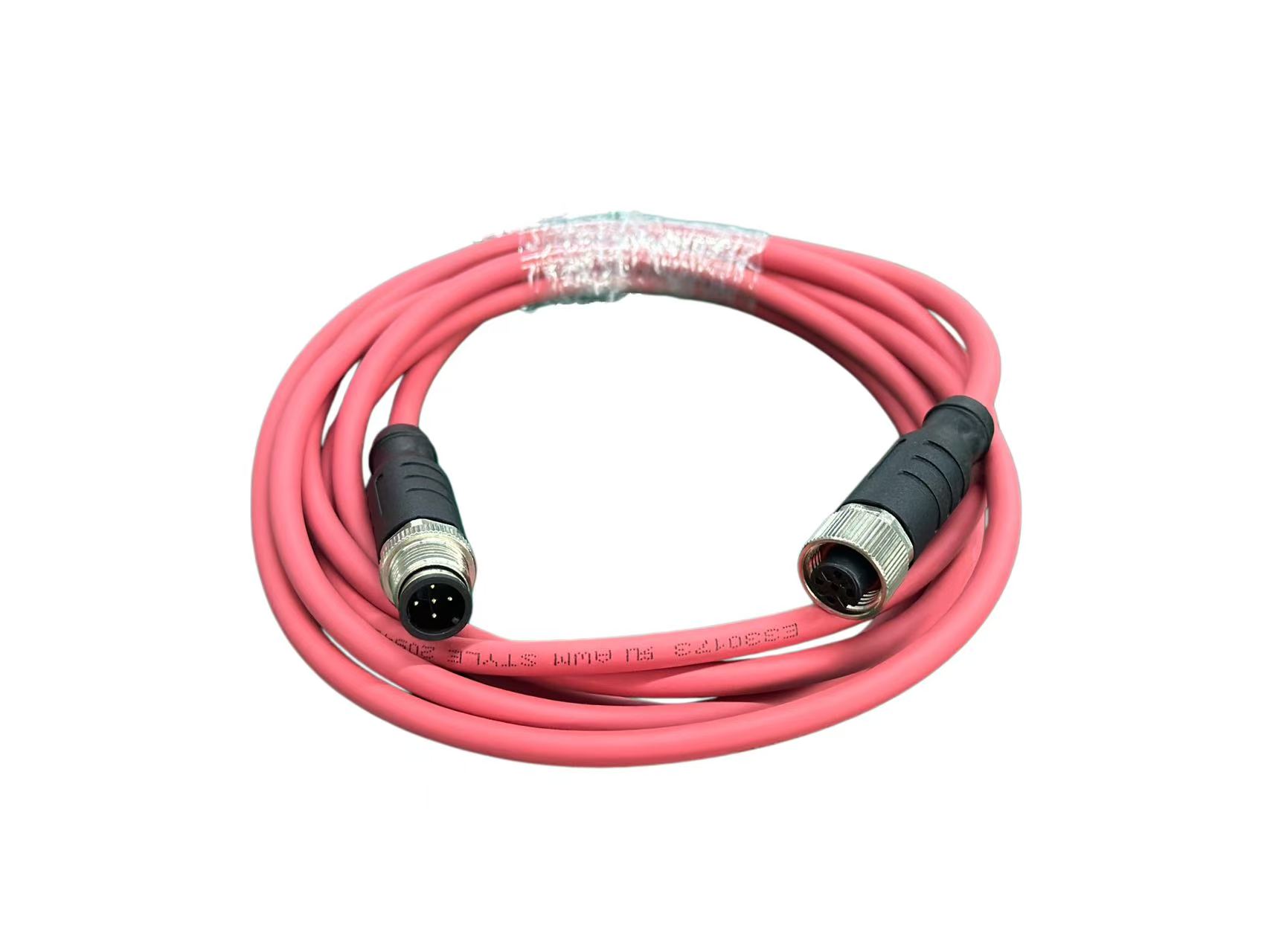

A-coded M12 is the general-purpose pattern for sensor leads, actuator drops, 24 V auxiliary power, and CAN-based segments such as DeviceNet and CANopen. A four-contact body can carry a power pair and a signal pair. A five-contact body gives you V+, V−, CAN_H, CAN_L, and a drain contact, which is why 5-pin A-coding is the usual shape for a DeviceNet branch. Ximeconn offers this distributor in A-coding and supports 2, 3, 4, 5, 8, and 12 pos customization, so you can match an existing five-contact trunk to the distributor's contact layout. If your PLC port is A-coded, design around this family.

2. D-Coding Matches Four-Wire Industrial Ethernet Links

D-coded M12 carries four contacts and uses its own keyway for 100 Mbit industrial Ethernet links, typically PROFINET or EtherCAT over two shielded pairs. Choose an M12 D-coded splitter when the PLC port, or the coupler in front of it, is a D-coded Ethernet port. Keep CAN trunks on A-coded bodies. The keyways keep the two families apart, so a module with one CAN segment and one Ethernet segment needs two distributor types rather than one body plus an adapter. For Ethernet, keep the physical layer in view: a 100BASE-TX link is point-to-point, so three outputs from one PLC port serve as a cabling breakout. Three live Ethernet devices still need a switch in that segment.
