Solar connectors

Your current location:Home - Products - Connector - Solar connectors
solar cable DC interconnection system and AC interconnection system Customized

solar cable DC interconnection system and AC interconnection system Customized

Standard: IEC62852 and UL61730 latest industry standard
Ambient temperature - 55 ℃ ~ + 125 ℃
Rated voltage: DC system products 1000V and 1500V, AC system products 300V and 450V
Connector plug-in: optional for PA / PC / TPU
Connector contact: Gold Plated beryllium copper
Joint forming: optional for PA / PC / TPU
Seal / O-ring: FKM
Insulation resistance: ≥ 100m Ω
Contact resistance: ≤ 0.5m Ω
Protection level: IP68 in locked state

  • description
  • Application
  • Case
  • Download

In the solar energy interconnection system, there are two kinds: DC interconnection system and AC household connection system. Their human boundary lies in that before and after the inverter's transformation of current attribute, photovoltaic output is DC. After the huge DC interconnection system gathers DC voltage and current from DC photovoltaic panel to the boundary point, photovoltaic inverter transforms, and after the transformation is AC When there was an AC interconnection system, this AC interconnection system sent electricity to the grid system or to the energy storage battery system through a huge pull-out output, or directly to the home and electrical appliances. Our company provided these two kinds of interconnected cable systems, which can be used in the complex outdoor environment for 25 years, and the electrical parameters have reached the international certification Standard, UL certification, TUV certification, CCC certification, EU CE certification, universal, can be assured of purchase and use. They can also be customized to use aluminum wire connectors. Why use the famous aluminum coin connector? Because it is light, easy to transport, easy to handle and install, low cost, we accept all kinds of aluminum wire, copper wire, AC system interconnection, DC system interconnection products customized production.

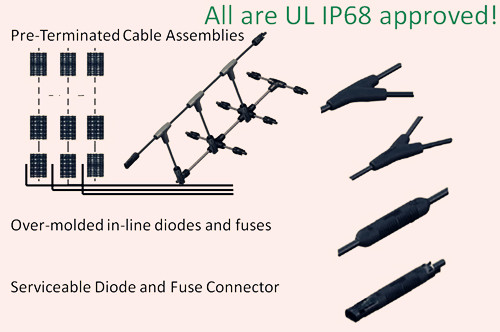

solar connector solution

Plastic material: exl9330 (x) (F1) (GG) (B1) injection molding, from the raw material manufacturer



SABIC INNOVATIVE PLASTICS JAPAN L L C,UL:E207780



Terminal material: C1100-H, HV110, conductivity 99.99%, pre-plating material KMD T=0.4mm



Shell material: EXL9330 (x) (F1) (GG) (B1)



Electroplating material: nickel bottom is applied to crown spring terminal as a whole, and all gold 1U is plated, beryllium copper C17200 TM06, T = 0.15mm



Sealing material: fluororubber, cold resistant, high temperature resistant, elastic stable, outdoor f1 grade



Wire matching: high flexibility and bending resistance 10 million times, 5 million times, wire material XLPE, f1 irradiation crosslinking outdoor use for 25 years



Standard: IEC62852 and UL61730 latest industry standard



Ambient temperature - 55 ℃ ~ + 125 ℃



Rated voltage: DC system products 1000V and 1500V, AC system products 300V and 450V



Connector plug-in: optional for PA / PC / TPU



Connector contact: Gold Plated beryllium copper



Joint forming: optional for PA / PC / TPU



Seal / O-ring: FKM



Insulation resistance: ≥ 100m Ω



Contact resistance: ≤ 0.5m Ω



Protection level: IP68 in locked state


Standard: IEC62852 and UL61730 latest industry standard



Ambient temperature - 55 ℃ ~ + 125 ℃



Rated voltage: DC system products 1000V and 1500V, AC system products 300V and 450V



Connector plug-in: optional for PA / PC / TPU



Connector contact: Gold Plated beryllium copper



Joint forming: optional for PA / PC / TPU



Seal / O-ring: FKM



Insulation resistance: ≥ 100m Ω



Contact resistance: ≤ 0.5m Ω



Protection level: IP68 in locked state
