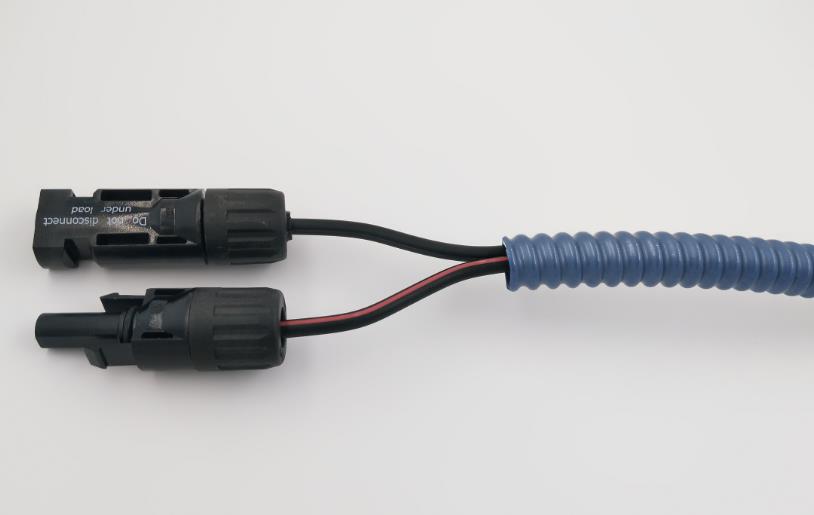

Solar MC4 photovoltaic 1500V solar connector MC4 DC connector UL connector EVO2

Solar MC4 photovoltaic 1500V solar connector MC4 DC connector UL connector EVO2

Rated voltage 1500V DC per UL 6703 1000V DC per TÜV IEC62852
Rated current 25A ( 2.5mm2 /14AWG) 35A ( 4.0mm2/ 12AWG) 45A (6.0mm2/10AWG)
(per IEC 62852, 85°C) Rated current (per UL 6703)
Rated impulse voltage 12kV(1000V DC per TÜV)
Typical contact resistance ≤0.3mΩ
Contact material Cold Formed (CF) or Stamped & Formed (S&F)*1
Contact system options Tin-plated Copper Alloy
Insulation material PC/PA
Type of termination Crimping

  • description
  • Application
  • Case
  • Download
Connector system Ø 4 mm UL6703 connector
Rated voltage
1000 V DC / 1500 V DC (TÜV) ¹⁾
600 V DC / 1000 V DC / 1500 V DC (UL) ²⁾
1500 V DC (JET) ³⁾ Ambient temperature range -40 °C ... +85 °C (TÜV / UL)
Rated current TÜV (85 °C)
39 A (2.5 mm² / 14 AWG)
45 A (4.0 mm² / 12 AWG) Suited for all climatic environments
53 A (6.0 mm² / 10 AWG) thanks to resistance to UV, ammonia,

69 A (10.0 mm² / 8 AWG) and high IP class (IP68)



Connector system Ø 4 mm UL6703 connector
Rated voltage
1000 V DC / 1500 V DC (TÜV) ¹⁾
600 V DC / 1000 V DC / 1500 V DC (UL) ²⁾
1500 V DC (JET) ³⁾ Ambient temperature range -40 °C ... +85 °C (TÜV / UL)
Rated current TÜV (85 °C)
39 A (2.5 mm² / 14 AWG)
45 A (4.0 mm² / 12 AWG) Suited for all climatic environments
53 A (6.0 mm² / 10 AWG) thanks to resistance to UV, ammonia,

69 A (10.0 mm² / 8 AWG) and high IP class (IP68)
