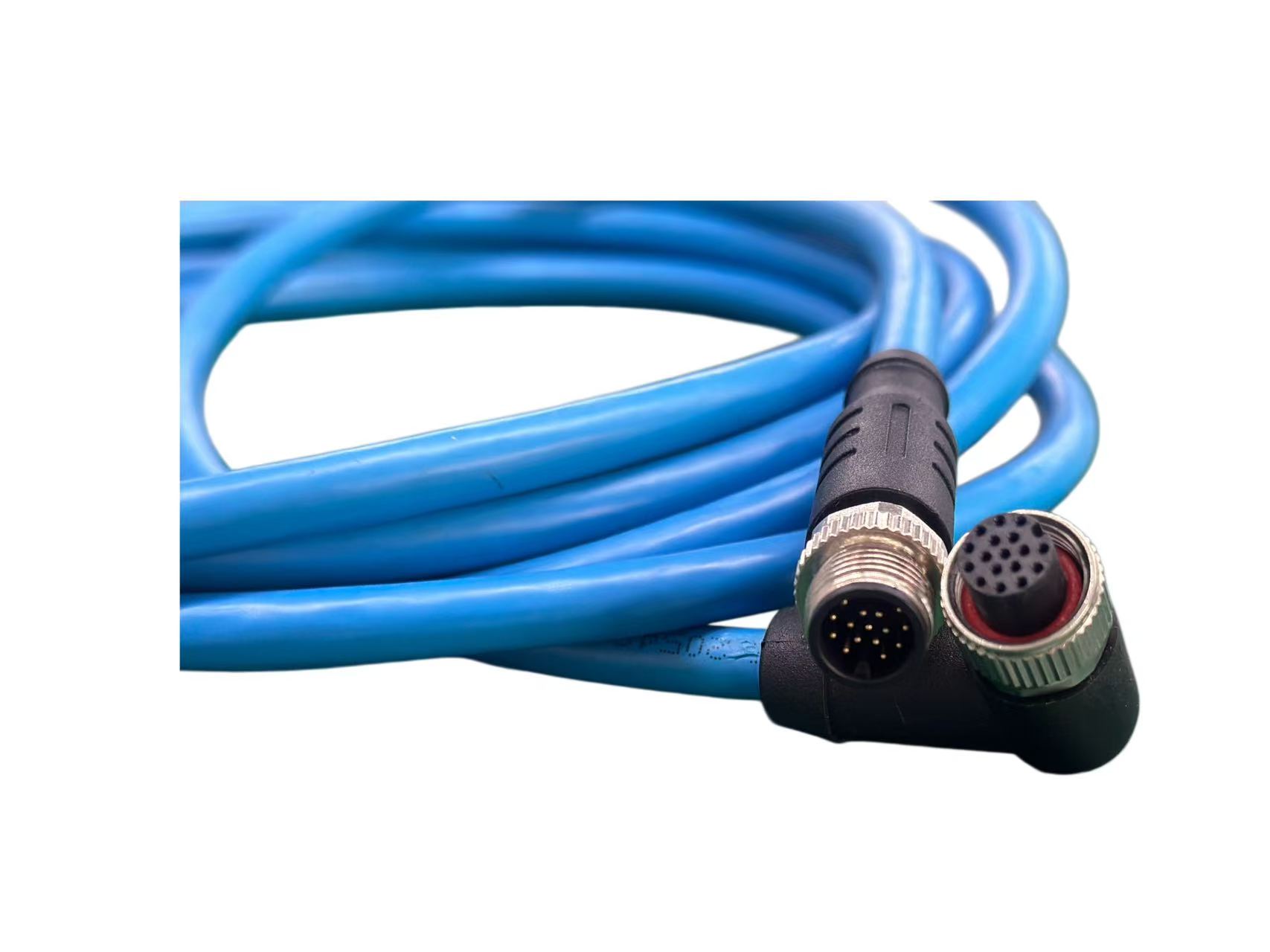

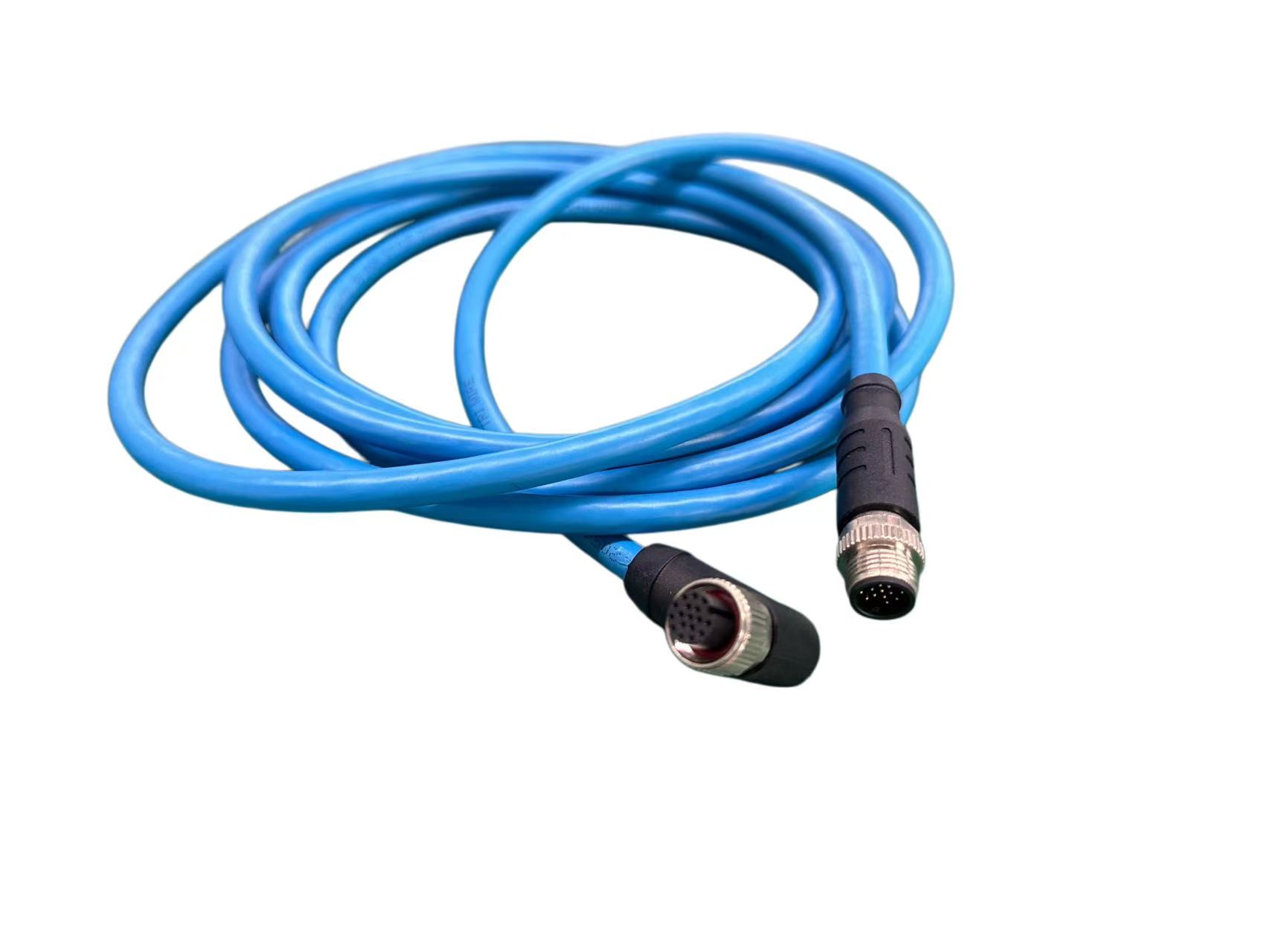

Your current location：Home - Products - Circular connector - M12 seriesM12 17Pin A-coded cable assembly, straight male to 90° elbow female, blue PUR cable, IP67 waterproof high density circular connector. Gold-plated contacts, anti-vibration & oil resistant. Widely used for machine vision and industrial automation. Custom length & pinout, factory direct supply.
Model: M12 A-coded 17Pin Cable Assembly
Connector: Straight Male to 90° Elbow Female
Pin Count: 17Pin (17-core, high density)
Coding: A-Code
Cable Jacket: Blue PUR (Polyurethane)
Protection Grade: IP67
Contacts: Gold-plated contacts
Construction: Overmolded cable assembly, finished cable
✅ Performance Parameters
Features: Anti-vibration, oil resistant, flexible, low temperature resistant
Application: Machine vision, industrial automation, sensor signal transmission
Wiring: Custom pinout (pin assignment available)
Cable Length: Custom length available
Supply: Factory direct supply
✅ Mechanical & Material Details
Housing: TPU/PVC overmolded housing, impact resistant
Locking Nut: Nickel-plated brass thread
Contact: Copper alloy with gold plating
Cable Sheath: Blue PUR, oil resistant, hydrolysis resistant, abrasion resistant
Connection Type: Thread locking, anti-loosening
Operating Temperature: -40℃ ~ +85℃ (standard specification for PUR cable)
ur M12 17Pin right angle cable is specially developed for compact industrial equipment requiring multi-signal integration. ✅ Machine Vision: Industrial cameras, visual inspection systems, multi-channel sensor signal transmission ✅ Industrial Automation: Robot end effectors, automatic production lines, multi-channel I/O modules ✅ Test & Measurement: Testing instruments, data acquisition equipment ✅ Intelligent Equipment: Motion control units, fieldbus peripheral devices The 90° elbow design saves cabinet and panel installation space. It prevents sharp cable bending in narrow corners and makes wiring much easier inside compact machinery.
|
